Sensor-Input Speed

Component ID: 381
Component : SENSOR-INPUT SPEED

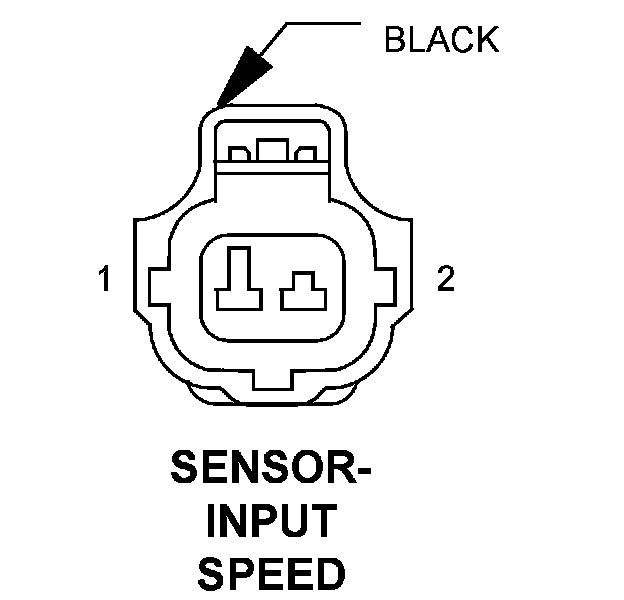

Connector:
Name : SENSOR-INPUT SPEED
Color : BLACK
# of pins : 2




Pin Circuit Description
1 T52 20VT/OR INPUT SPEED SIGNAL
2 T13 20DG/VT SPEED SENSOR GROUND

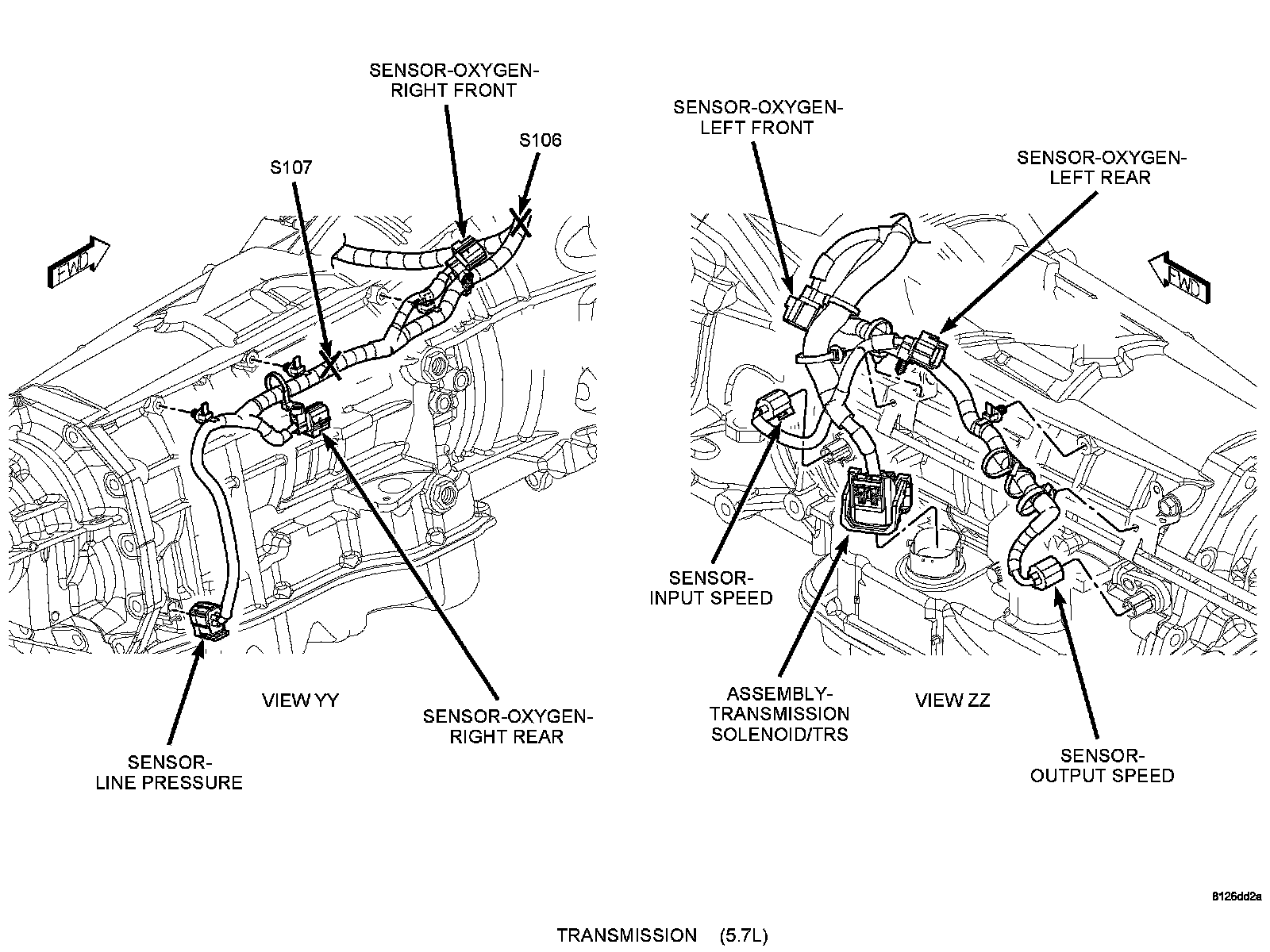

Component Location - 14

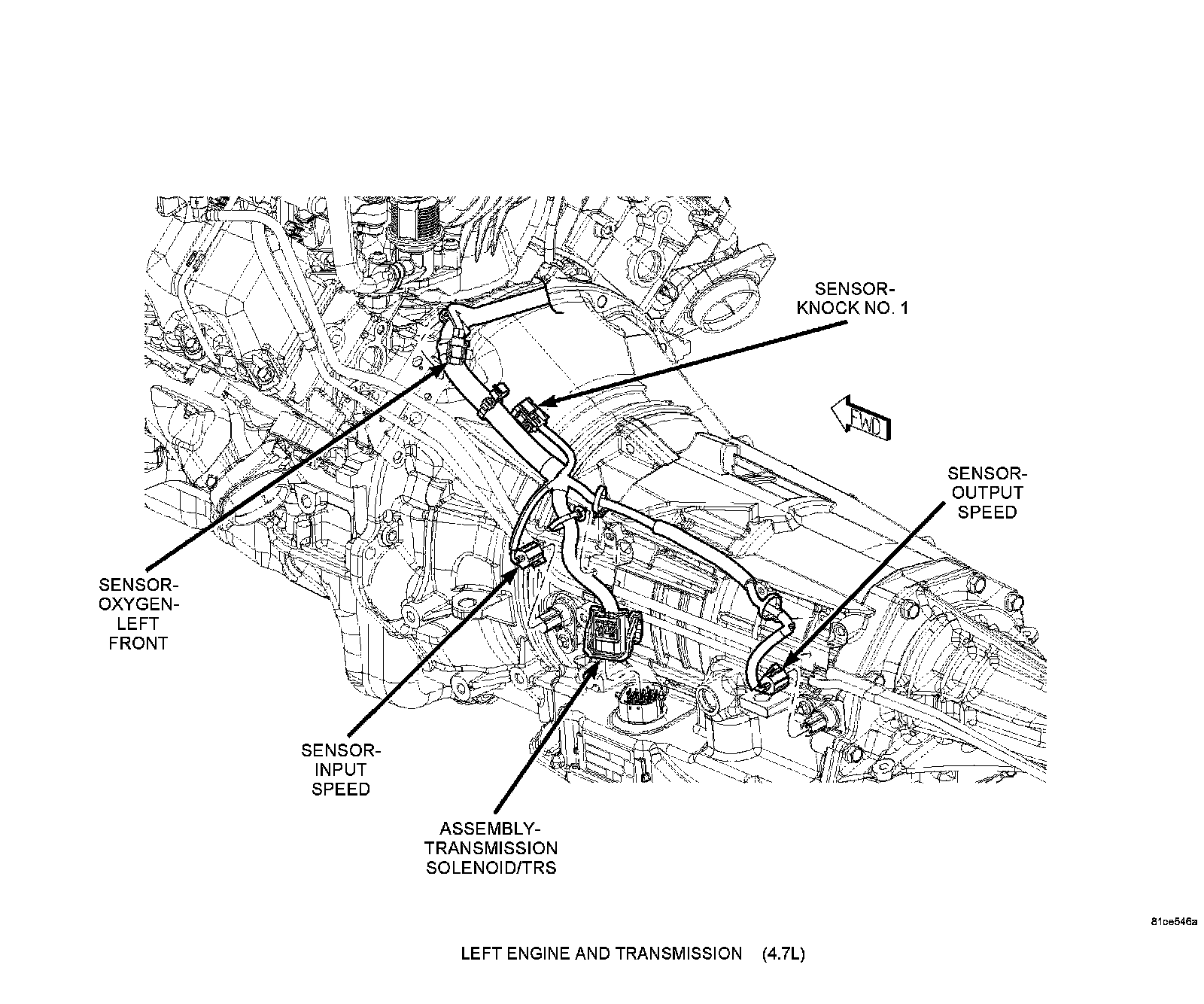

Component Location - 26




Component Location - 19
