System Specifications

3.7L ENGINE


































CRANKSHAFT MAIN BEARING SELECTION

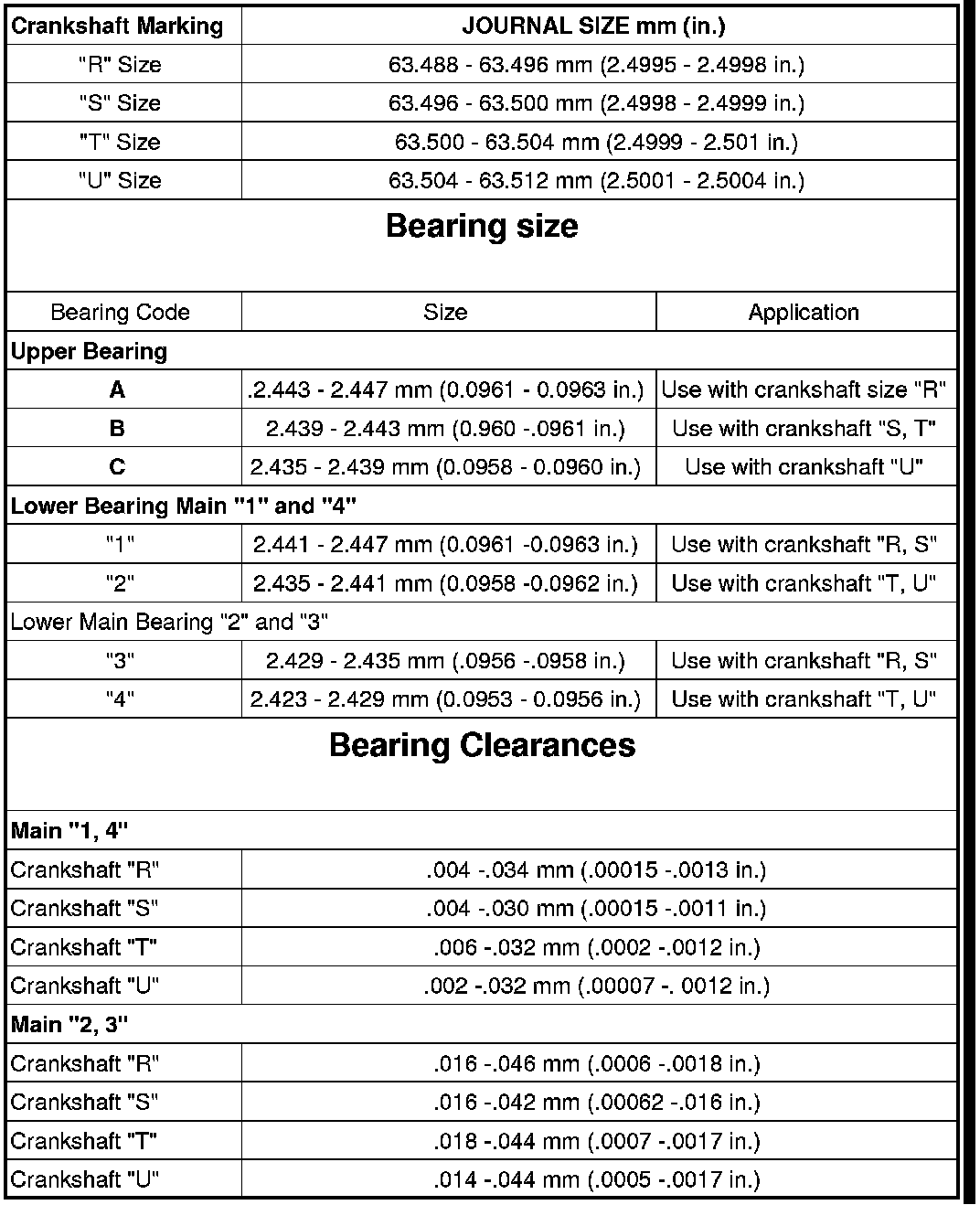

Service main bearings are available in four grades. The chart below identifies the four service grades available.






Main bearing Cap Torque and Sequence

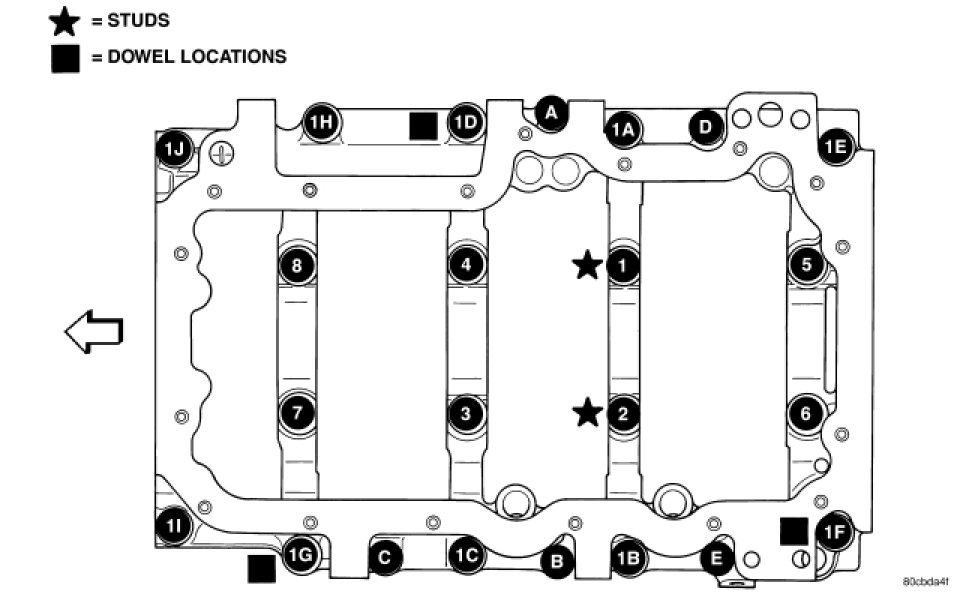

Install the bedplate retaining bolts, making sure to place the stud bolts in the correct location, Torque the bolts in the sequence shown.
- Hand tighten bolts 1D,1G and 1F until the bedplate contacts the block.
- Tighten bolts 1A - 1J to 54 Nm (40 ft. lbs.)
- Tighten bolts 1 - 8 to 7 Nm (62 in. lbs.)
- Turn bolts 1 - 8 an additional 90°.
- Tighten bolts A - E 27 Nm ( 20 ft. lbs.).

Crankshaft Pulley Torque
