Oil Temperature Sensor/Switch, Engine

Component ID: 376
Component : SENSOR-ENGINE OIL TEMPERATURE

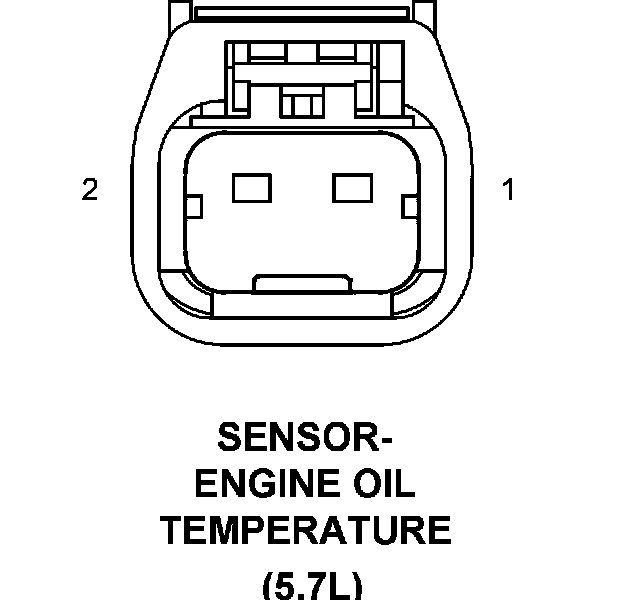

Connector:
Name : SENSOR-ENGINE OIL TEMPERATURE
Color :
# of pins : 2
Qualifier : (5.7L)




Pin Circuit Description
1 G24 20VT/BR TEMPERATURE SENSOR SIGNAL
2 K900 20DB/DG SENSOR GROUND OIL

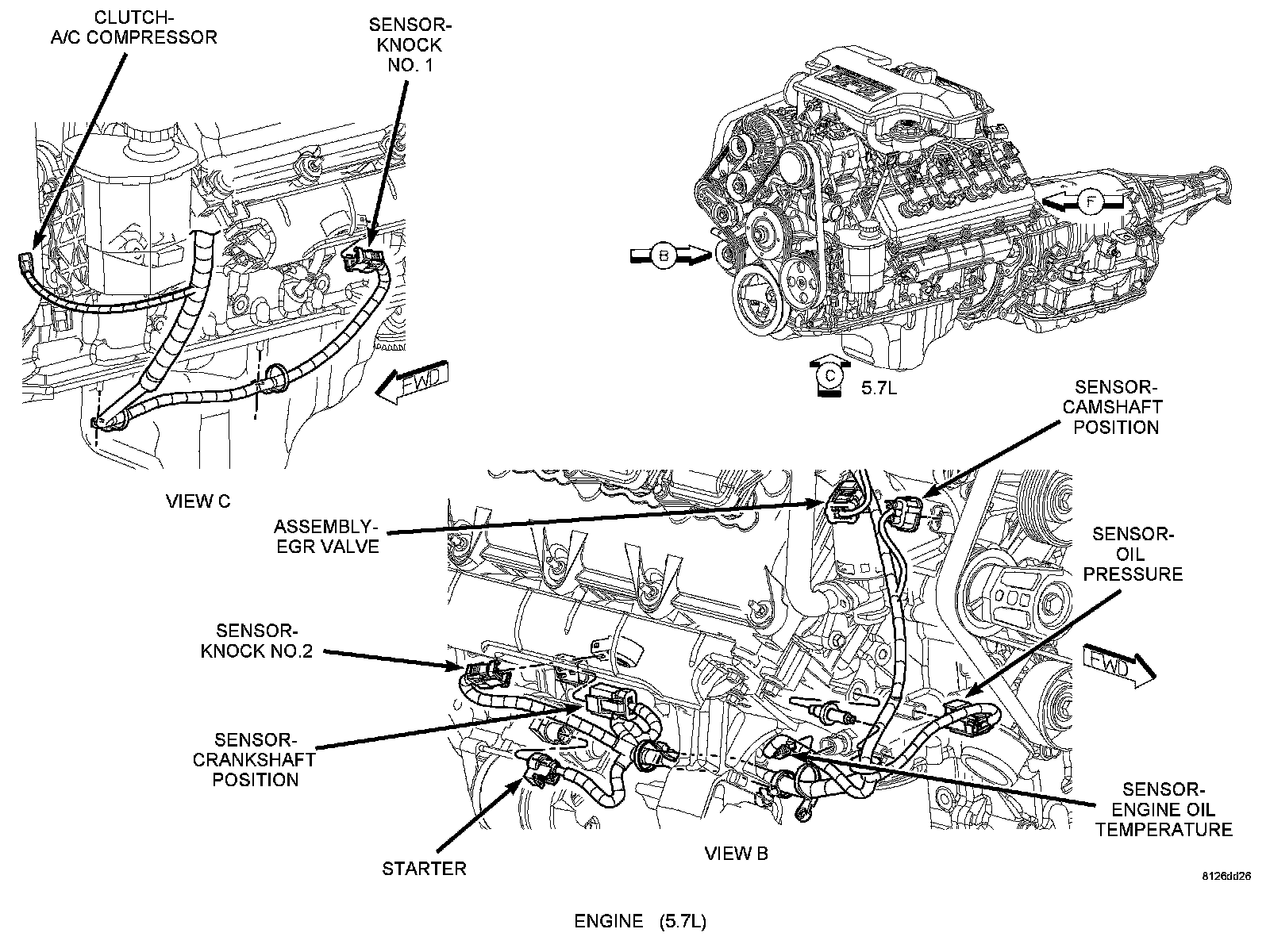

Component Location - 25
