Oil Pressure Sensor: Service and Repair

Engine, 5.7L/Lubrication/SENSOR, Oil Pressure/removal


REMOVAL

1. Disconnect and isolate the negative battery cable.

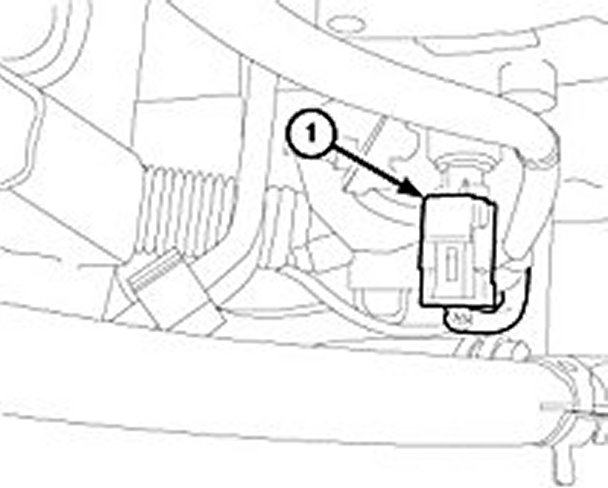

2. Disconnect the oil pressure sensor electrical connector (1).

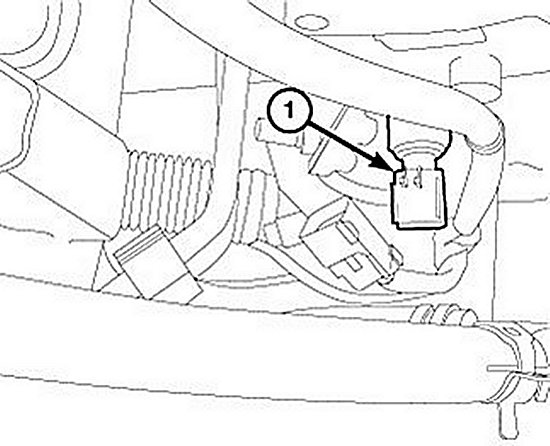

3. Remove the oil pressure sensor (1).

Engine, 5.7L/Lubrication/SENSOR, Oil Pressure/installation

INSTALLATION

NOTE:Apply Mopar� Thread Sealant with PTFE to the sensor threads with before installing into the engine block.






1. Install the oil pressure sensor (1).






2. Connect the oil pressure sensor electrical connector (1).
3. Connect the negative battery cable.
