Pedal Positioning Sensor

Component ID: 369

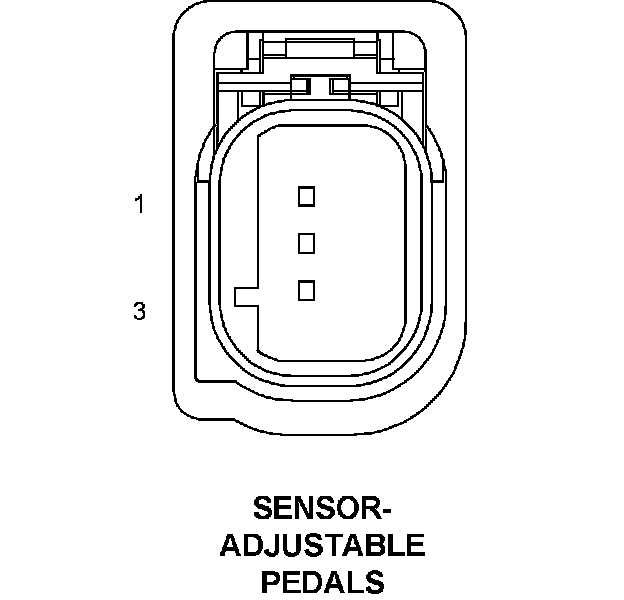

Component : SENSOR-ADJUSTABLE PEDALS

Connector:
Name : SENSOR-ADJUSTABLE PEDALS
Color :
# of pins : 3




Pin Circuit Description
1 G912 20VT/WT ADJUSTABLE PEDALS SENSOR RETURN
2 G12 20VT/BR ADJUSTABLE PEDALS SENSOR SIGNAL
3 G11 20VT/TN ADJUSTABLE PEDALS SENSOR SUPPLY

Component Location - 28
