DTC Troubleshooting
>>
*Both Diagnostic Can C (+) And Diagnostic Can C (-) Circuits Open
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

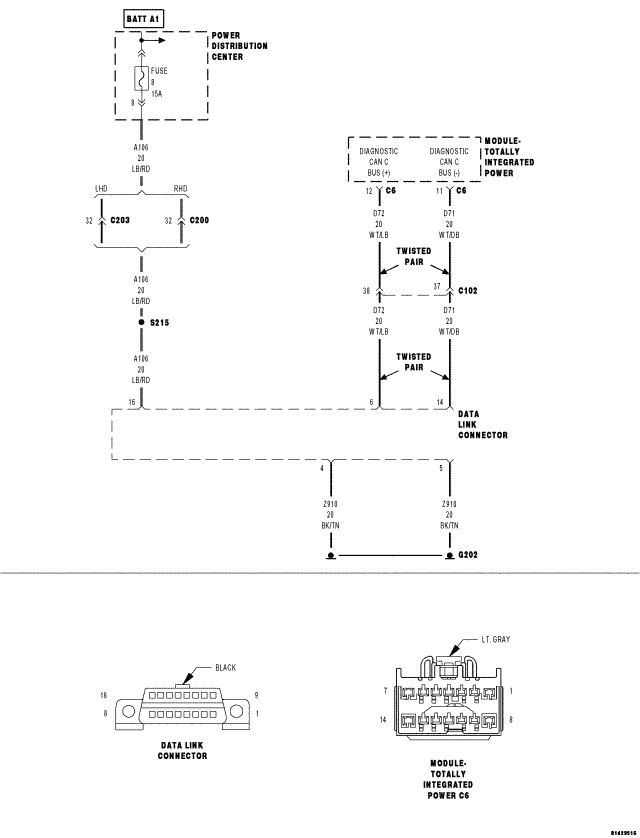

Fig 1: Diagnostic CAN C Circuit Schematic
