Power Window System - Electrical Diagnostics
>>
Power Windows - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B185A-Driver Window Position Sensor Circuit Performance - DDM
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

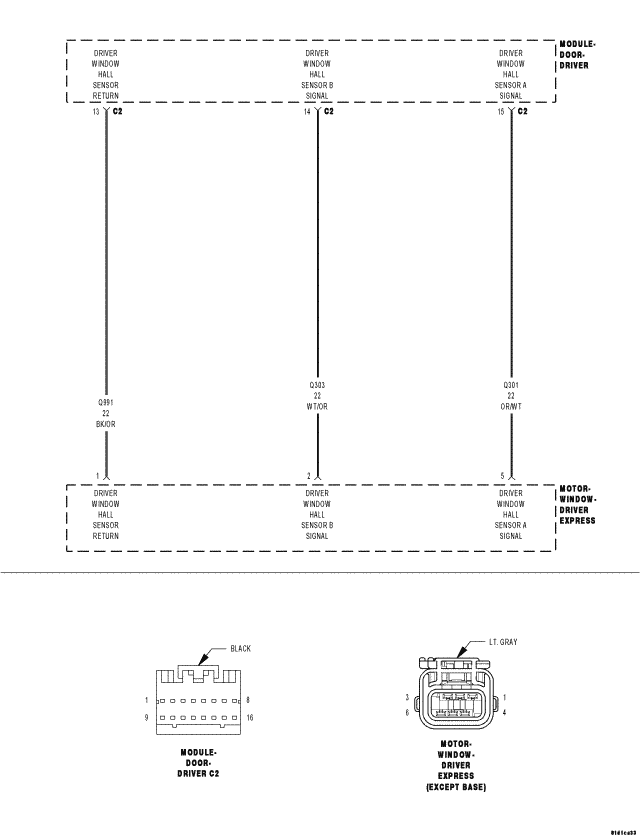

Fig 1: Driver Window Position Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
