Hands Free Module

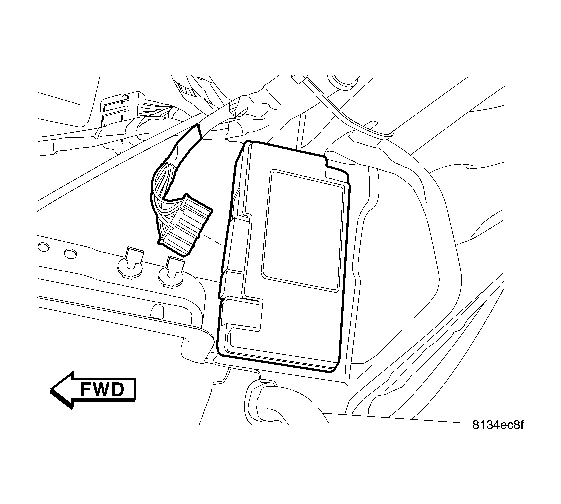

Fig 1: Disconnecting/Connecting Hands Free Module Connector
GC0016215Courtesy of CHRYSLER LLC
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to STANDARD PROCEDURE .
  1. Disconnect and isolate the battery negative cable.
  2. Remove the glove box.
  3. Disconnect the electrical harness connector.

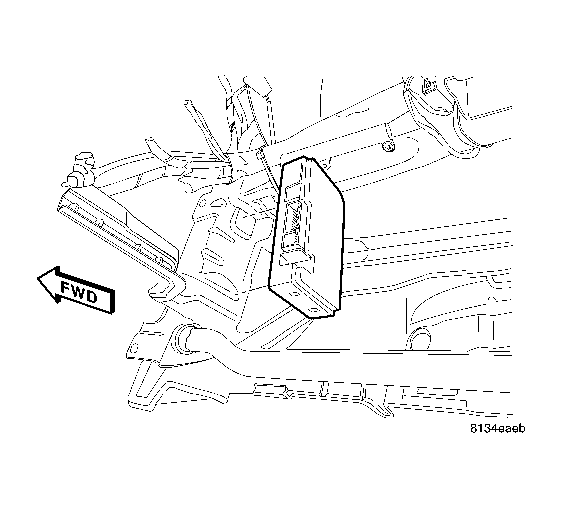

    Fig 2: Removing/Installing Hands Free Module
    GC0016214Courtesy of CHRYSLER LLC
  4. Remove the mounting fasteners
  5. Remove the hands free module.
