Module - Remote Start Antenna

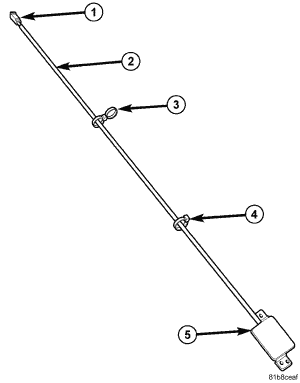

Fig 1: REMOTE START ANTENNA MODULE ASSEMBLY
GC0050740Courtesy of CHRYSLER LLC

The Remote Start Antenna Module Assembly consists of an electrical connection to the WCM/WIN (1), a length of coaxial cable (2), two mounting clips (3) and (4), and a control module/antenna (5).
