Module - Remote Start Antenna

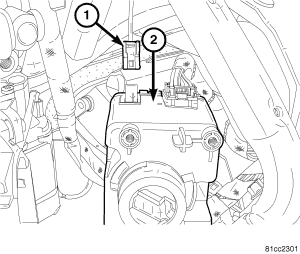

Fig 1: RSA ELECTRICAL CONNECTOR

Courtesy of CHRYSLER LLC

WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components. Failure to do this may result in serious or fatal injury.

The remote start antenna is located on the passenger side above and to the left of glove box.

Disconnect and isolate the battery negative cable.
Remove screws from Wireless Ignition Node (WIN). Refer to REMOVAL .
Remove the coaxial electrical cable connector (1) from WIN (2).

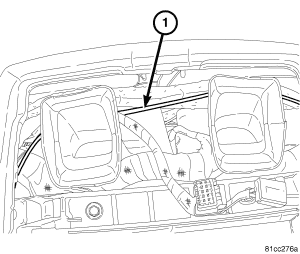

Fig 2: RSA ROUTING
Courtesy of CHRYSLER LLC
Remove center bezel. Refer to REMOVAL .
NOTE: During removal of the remote start antenna note the routing location of the coaxial cable.
Remove the remote start antenna coaxial cable from mounting clips, if equipped.

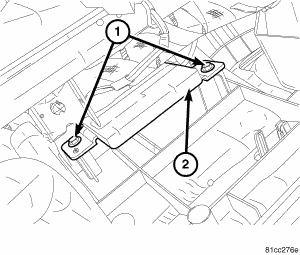

Fig 3: RSA MODULE AT DASH
Courtesy of CHRYSLER LLC
Remove glove box. Refer to REMOVAL .
Remove the screws (1) from remote start antenna module (2) and remove from instrument panel assembly.
