Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1326018-2

Part Description: PLUG ASSEMBLY, 32P UNSEALED 0.64MM CONN

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 32

Fig 1: Module-Occupant Restraint Controller C2 Connector End View

Courtesy of CHRYSLER

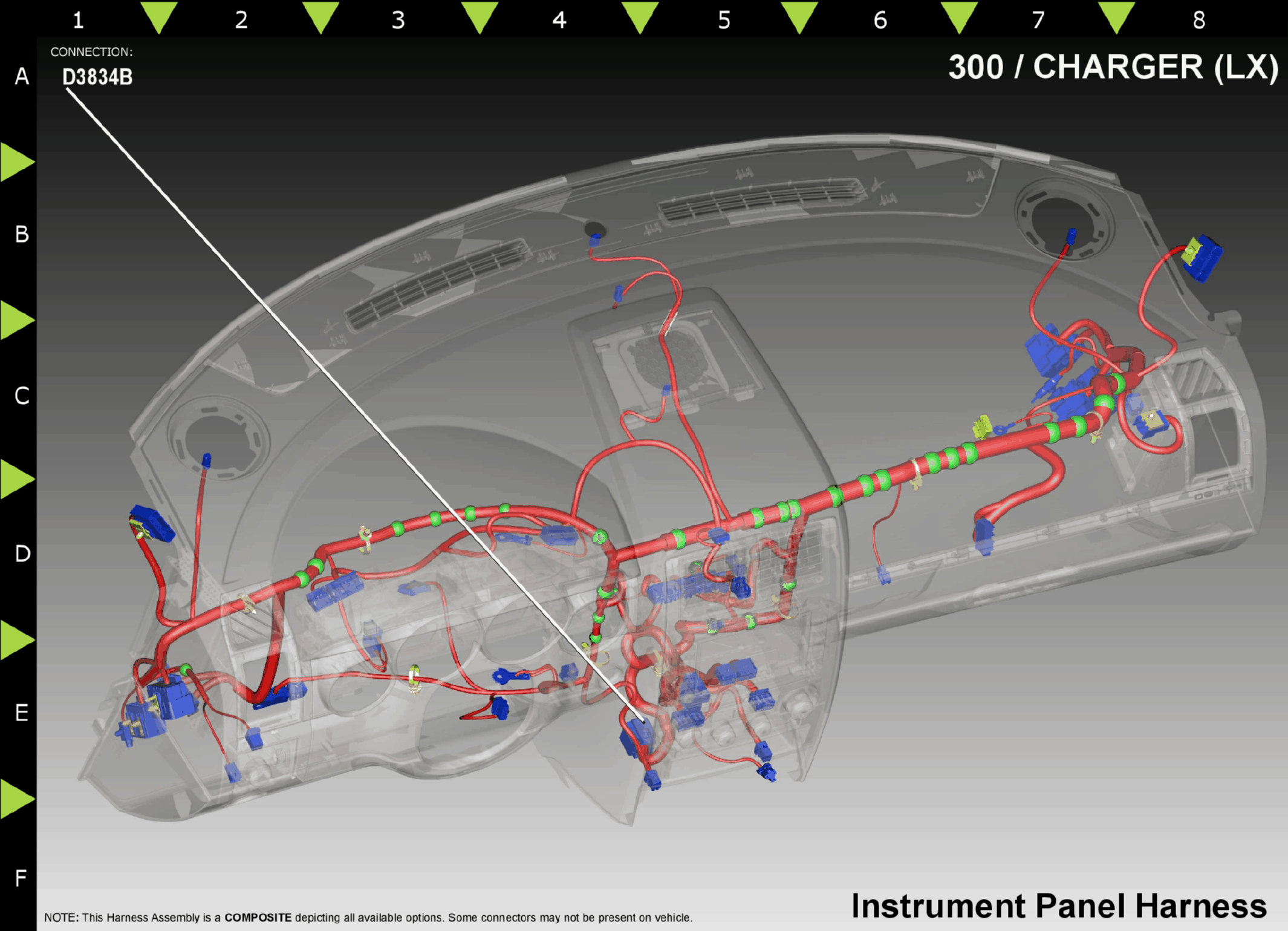

Fig 2: Module-Occupant Restraint Controller C2 Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
B1	R43	LG	20	DRIVER SQUIB 1 LINE 2	N/A
B12	R82	WT	20	RIGHT FRONT IMPACT SENSOR GROUND	N/A
B15	D65	WT	20	CAN C (+)	N/A
B16	F201	PK	20	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
B19	R80	VT	20	RIGHT FRONT IMPACT SENSOR SIGNAL	N/A
B2	R45	LG	20	DRIVER SQUIB 1 LINE 1	N/A
B20	R81	LB	20	LEFT FRONT IMPACT SENSOR GROUND	N/A
B21	R79	LB	20	LEFT FRONT IMPACT SENSOR SIGNAL	N/A
B22	Z939	BK	18	GROUND	N/A
B23	D64	WT	20	CAN C (-)	N/A
B24	F500	DG	20	FUSED OUTPUT (RUN)	N/A
B3	R63	LG	20	DRIVER SQUIB 2 LINE 1	N/A
B4	R61	LG	20	DRIVER SQUIB 2 LINE 2	N/A
B5	R42	LB	20	PASSENGER SQUIB 1 LINE 2	N/A
B6	R44	LB	20	PASSENGER SQUIB 1 LINE 1	N/A
B7	R64	LB	20	PASSENGER SQUIB 2 LINE 1	N/A
B8	R62	LB	20	PASSENGER SQUIB 2 LINE 2	N/A
