Sending Unit And Sensor-Fuel Level - Left Side

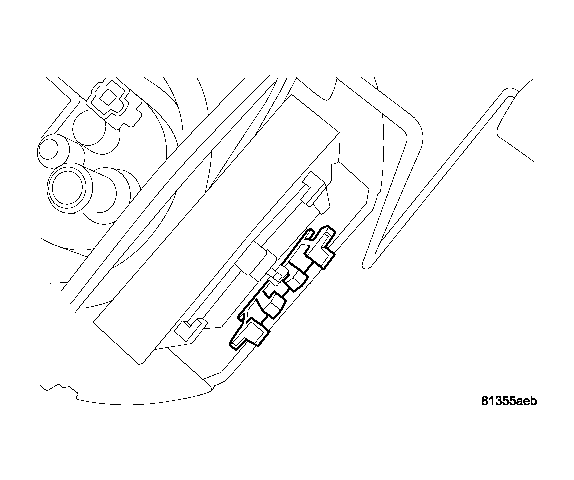

Fig 1: Removing/Installing Level Card

Courtesy of CHRYSLER LLC

Install level sending card, make sure that the locking tabs are locked on the card.

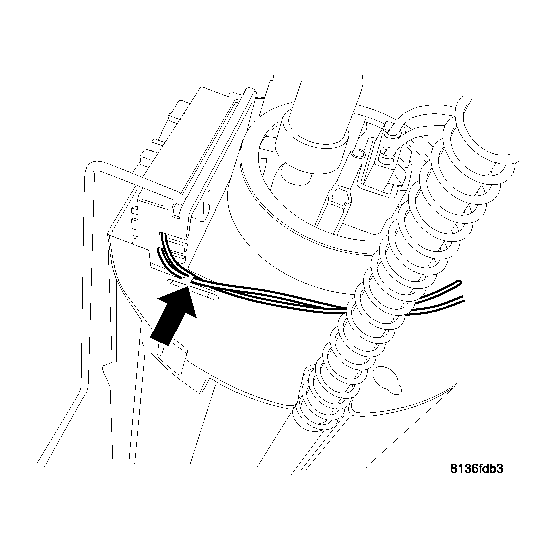

Fig 2: Wire Location Left Card
Courtesy of CHRYSLER LLC
Route wires in the proper location.

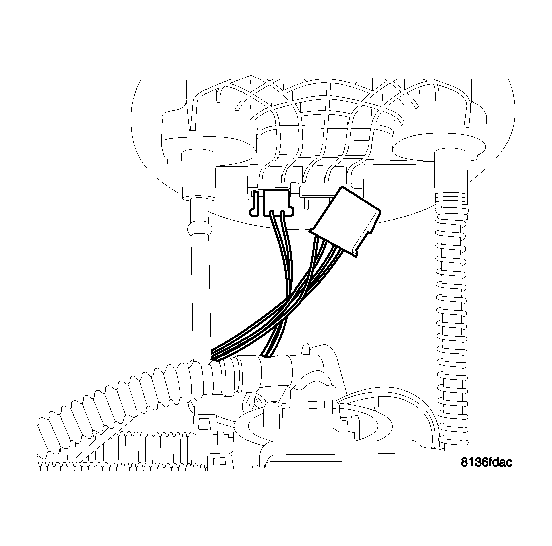

Fig 3: Electrical Connectors
Courtesy of CHRYSLER LLC
Install module top to module bottom.

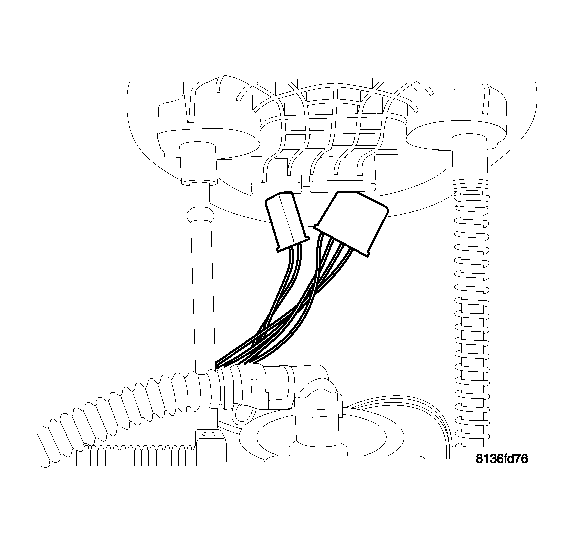

Fig 4: Electrical Connector Left Side Card
Courtesy of CHRYSLER LLC
Connect the electrical connectors for right side fuel level sending card, left side module card and fuel pump.

Fig 5: Left Side Module Orientation
Courtesy of CHRYSLER LLC
Install module and align marks on the module for proper orientation.

Fig 6: Removing/Installing Left Side Module Lock Ring Using Special Tool
Courtesy of CHRYSLER LLC
Install module lock-ring.
Use special tool #9340 to tighten left side module lock ring.
Connect the electrical connector to left side module and install plastic access cover.

Fig 7: Foam Pad Under Seat
Courtesy of CHRYSLER LLC
Fold the foam pad covering access cover for modules back into place.

Fig 8: Pulling Rear Seat Up
Courtesy of CHRYSLER LLC
Install rear lower seat cushion.

Fig 9: Rear Seat
Courtesy of CHRYSLER LLC
Rear lower seat cushion installed.

Fig 10: Draining Fuel
Courtesy of CHRYSLER LLC
Fill fuel tank.
Connect negative battery cable.
Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
