Sending Unit And Sensor-Fuel Level - Right Side

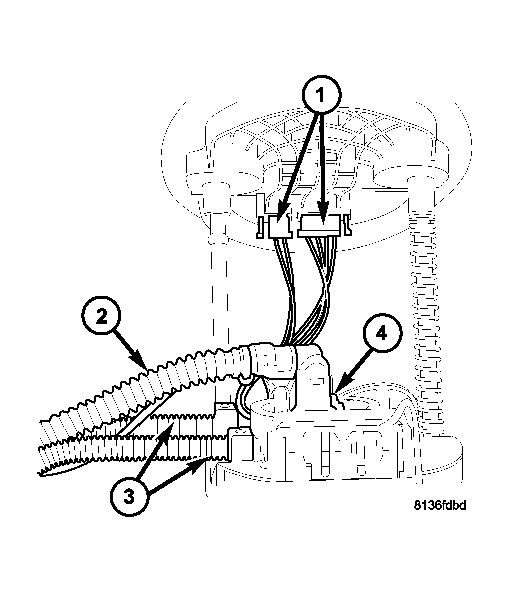

Fig 1: Level Card Locking Tabs

Courtesy of CHRYSLER LLC

1. Install level sending card, make sure that the locking tabs are locked on the card.

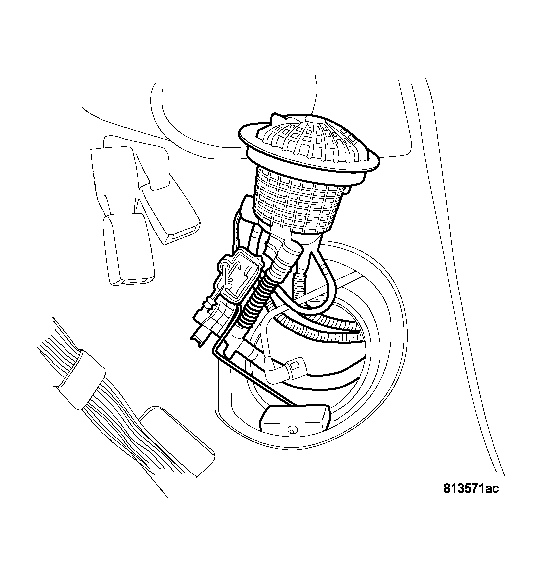

   Fig 2: Level Card Wires Pass Side

   Courtesy of CHRYSLER LLC
2. Route wires in the proper location.
3. Tie strap the wires harness to the hoses.

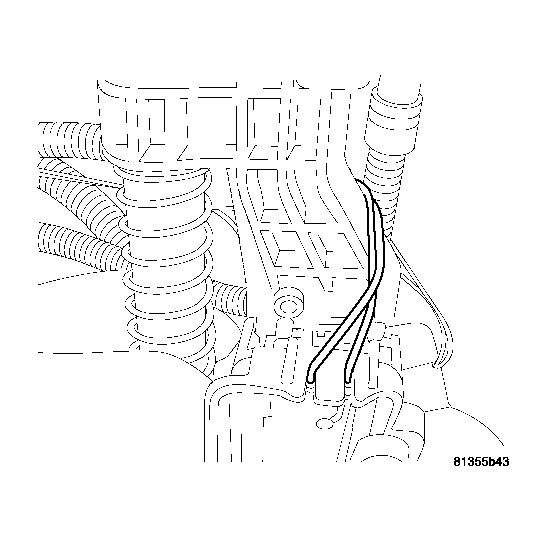

   Fig 3: Remove/Install Right Side Module

   Courtesy of CHRYSLER LLC
4. Feed hoses and wiring harness into fuel tank and over the center hump in tank.

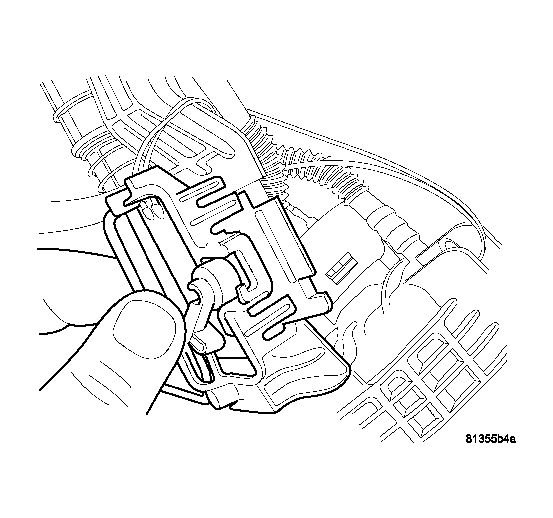

   Fig 4: Right Side Module Orientation

   Courtesy of CHRYSLER LLC
5. Install module and align marks on the module for proper orientation.
   Fig 5: Tool 9430 Right Side Module

   Courtesy of CHRYSLER LLC
6. Install module lock-ring.
7. Use special tool #9340 to tighten right side module lock ring.
8. Connect the fuel supply line to module.

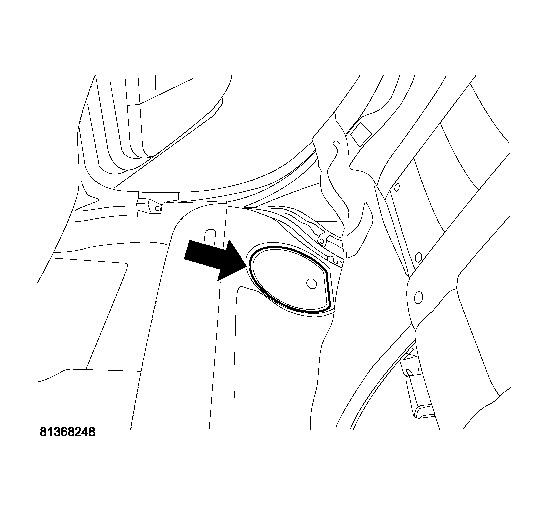

   Fig 6: Access Cover Right Side Module

   Courtesy of CHRYSLER LLC
9. Install plastic access covers to floor pan right side.
   Fig 7: View Of Fuel Return Line, Saipan Return Line & Module

   Courtesy of CHRYSLER LLC
10. Install the fuel return hoses to module.
11. Install fuel supply line to module.
    Fig 8: View Of Module Fuel Level Sending Card, Fuel Return Lines & Fuel Supply Line

    Courtesy of CHRYSLER LLC
12. Make sure that wires are routed properly.

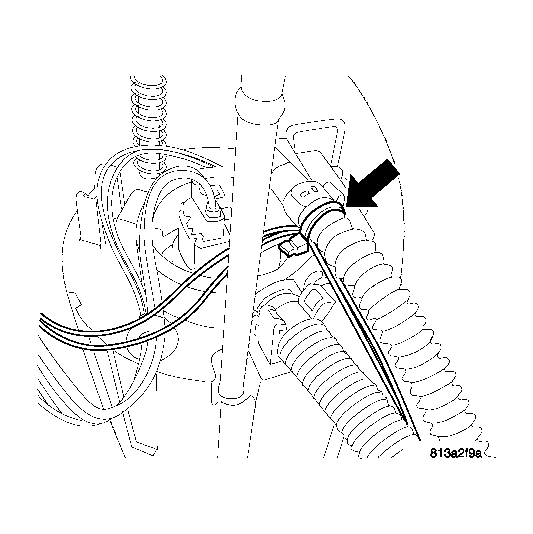

    Fig 9: Wire Tie Strap

    Courtesy of CHRYSLER LLC
13. Make sure that the level sending card wire is tie strapped to the fuel supply line at the module.
    Fig 10: Electrical Connectors

    Courtesy of CHRYSLER LLC
14. Install left side module top to module bottom.
    Fig 11: Locating Electrical Connectors

    Courtesy of CHRYSLER LLC
15. Connect the electrical connectors for right side fuel level sending card, left side module card. Make sure that wires are routed properly.

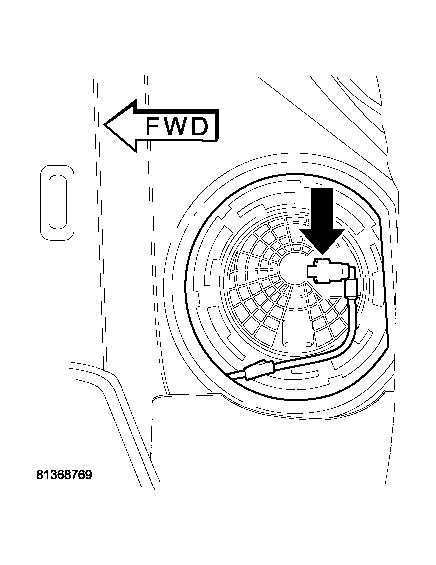

    Fig 12: Left Side Module Orientation

    Courtesy of CHRYSLER LLC
16. Install module and align marks on the module for proper orientation.

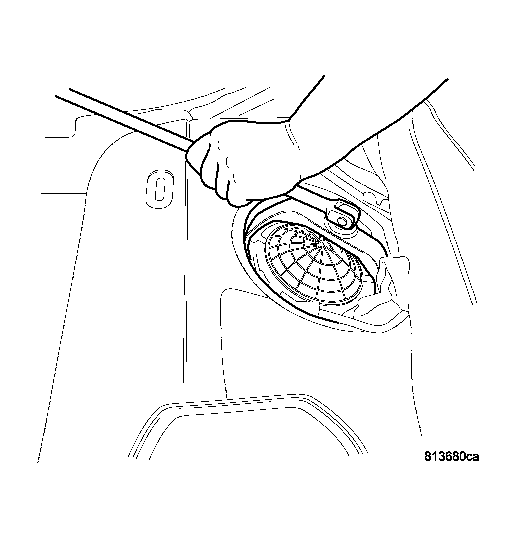

    Fig 13: Removing/Installing Left Side Module Lock Ring Using Special Tool

    Courtesy of CHRYSLER LLC
17. Install module lock-ring.
18. Use special tool #9340 to tighten left side module lock ring.
19. Connect the electrical connector to left side module and install plastic access cover.
    Fig 14: Foam Pad Under Seat

    Courtesy of CHRYSLER LLC
20. Fold the foam pad covering access cover for modules back into place.
    Fig 15: Pulling Rear Seat Up

    Courtesy of CHRYSLER LLC
21. Install rear lower seat cushion
    Fig 16: Rear Seat

    Courtesy of CHRYSLER LLC
22. Rear lower seat cushion installed.
    Fig 17: Draining Fuel

    Courtesy of CHRYSLER LLC
23. Fill fuel tank.
24. Connect negative battery cable.
25. Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
