Sensor - Map - 5.7L

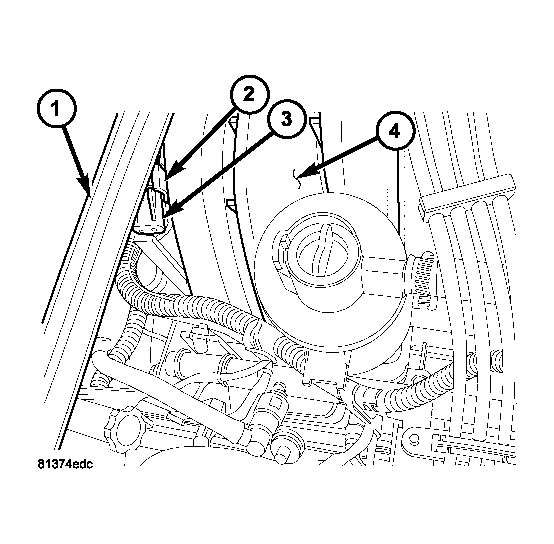

Fig 1: MAP Sensor Location - 5.7L
GC0013147Courtesy of CHRYSLER LLC
  1. Clean MAP sensor mounting hole at intake manifold.
  2. Check MAP sensor o-ring seal for cuts or tears.
  3. Position sensor (3) into intake manifold.
  4. Rotate sensor 1/4 turn clockwise for installation.
  5. Connect electrical connector (2) to sensor (3).
