Sensor - Map - 6.1L

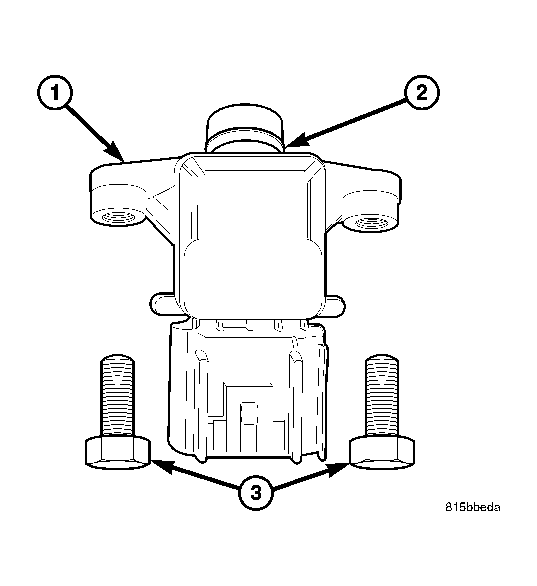

Fig 1: MAP Sensor Mounting - 6.1L
GC0039508Courtesy of CHRYSLER LLC
  1. Clean MAP sensor mounting hole at rear of intake manifold.
  2. Check MAP sensor o-ring seal (2) for cuts or tears.
  3. Position sensor (1) into intake manifold.
  4. Install two sensor mounting bolts (3).
  5. Connect electrical connector to sensor.
