Steering Column Slider Package

Remove the steering column opening cover. Refer to REMOVAL .

Fig 1: Reinforcement I/P Steering Column
Courtesy of CHRYSLER LLC
Remove the steering column opening reinforcement (1).
Unlock the manual column tilt and telescoping adjustment handle, then telescope the column full forward.

Fig 2: Unlatching Tilt Lever From Column
Courtesy of CHRYSLER LLC
Unsnap and move the adjustment handle locking tab (3) forward as shown unlatching the handle (2) from the column.

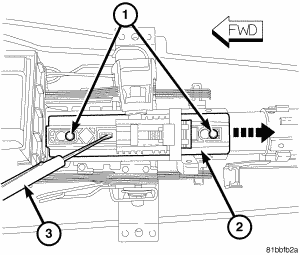

Fig 3: Retainer Pins - Slider Removal
Courtesy of CHRYSLER LLC
Using a small screwdriver (3) through the access hole, lift the retaining tab, then move the slider bar (2) toward the steering wheel until the large holes in the slots align with the casting pins (1) on the column.

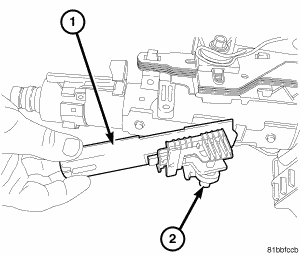

Fig 4: Slider Bar Removal/Installation
Courtesy of CHRYSLER LLC
Move the slider bar (1) off the casting pins, then tip it down at the steering wheel end and slide it off the slider sled (2).

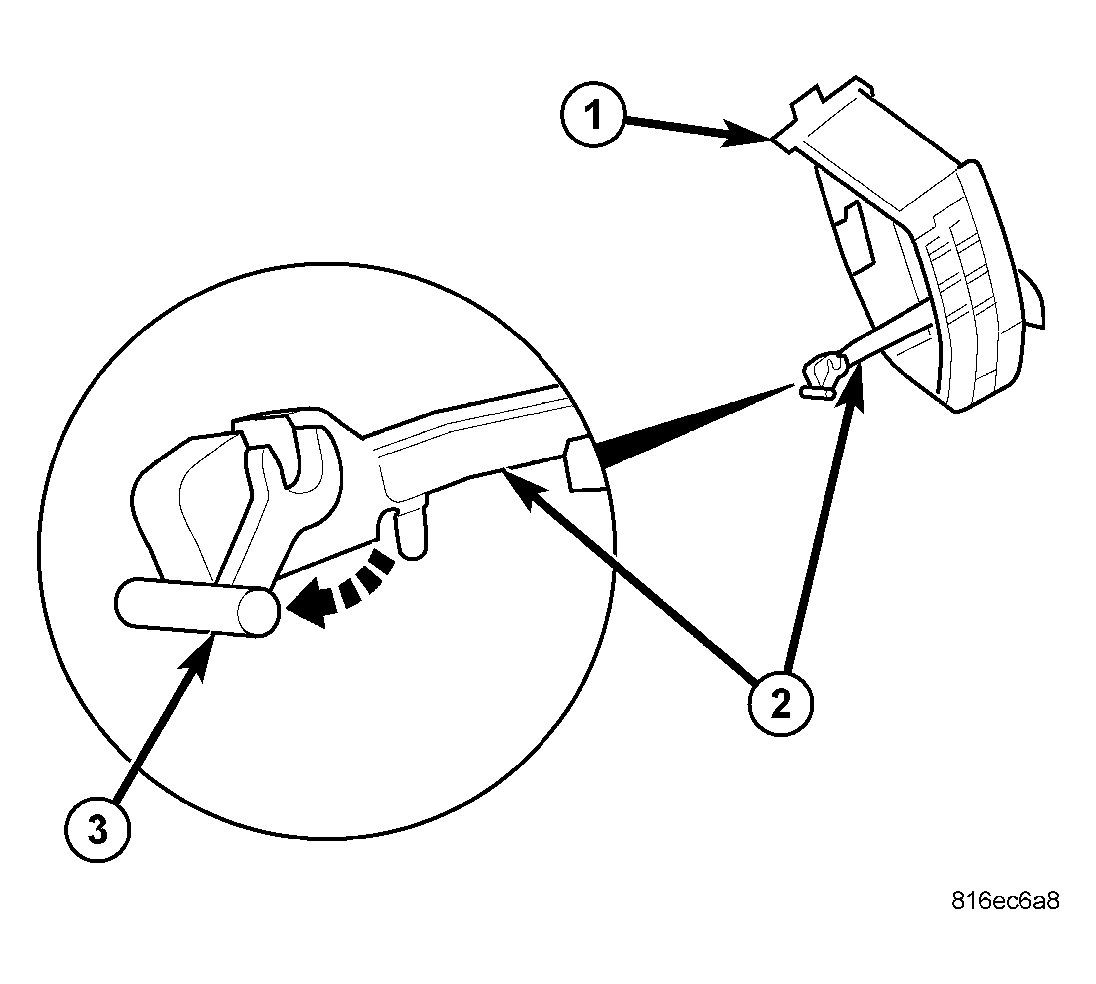

Fig 5: Slider Sled Removal/Installation
Courtesy of CHRYSLER LLC
Rotate the slider sled (1) as shown and remove it from the lever arm (2).
