Circuit Schematic

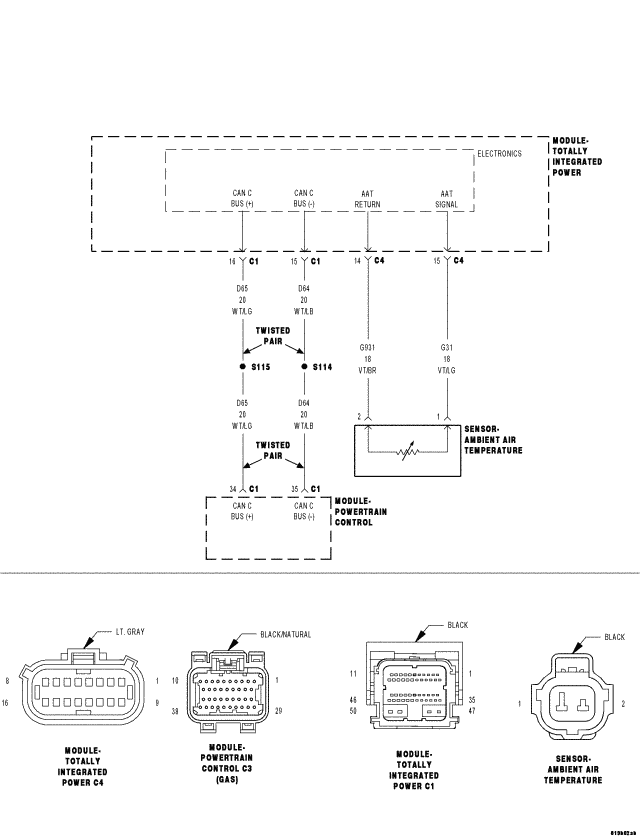

Fig 1: Ambient Temperature Sensor Circuit Schematic
GC0062053Courtesy of CHRYSLER LLC
