Installation

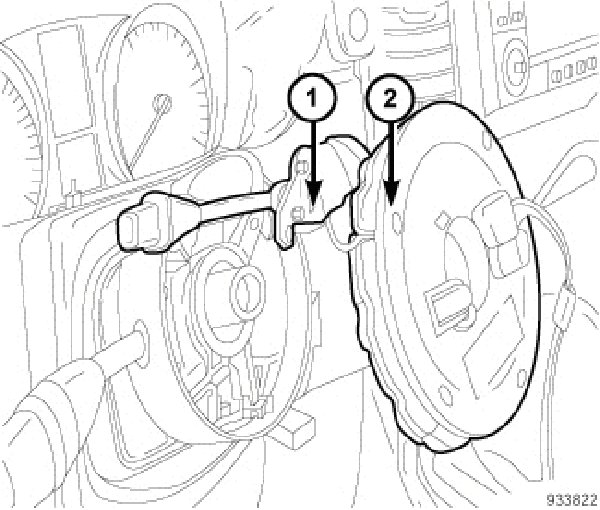

Speed Control Switch Installation







1. Install the speed control switch.

2. Install the switch mounting screw, refer to torque specifications.

3. Plug pigtail electrical connector into instrument panel wiring harness. Be sure wires are not pinched.

4. Install the clockspring, Service and Repair

5. Install negative battery cable to battery.
