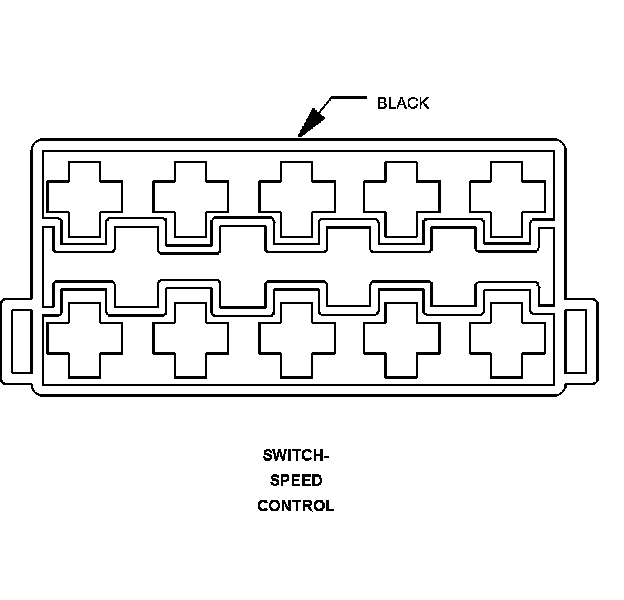

Switch-Speed Control

Component ID: 614
Component : SWITCH-SPEED CONTROL

Connector:
Name : SWITCH-SPEED CONTROL
Color : BLACK
# of pins : 10




Pin Circuit Description
1 U815 18GY/DB TERMINAL 58D
2 - -
3 - -
4 - -
5 - -
6 - -
7 320 18BK/GY -
8 - -
9 - -
10 312 18BR GROUND
