Removal

REMOVAL

WARNING: Review safety precautions and warnings in this group before performing this procedure Warning and Caution. Failure to follow the warnings and cautions may result in serious or fatal injury.





1. Disconnect and isolate the negative battery cable.
2. Recover the refrigerant from the refrigerant system Refrigerant System Recovery.

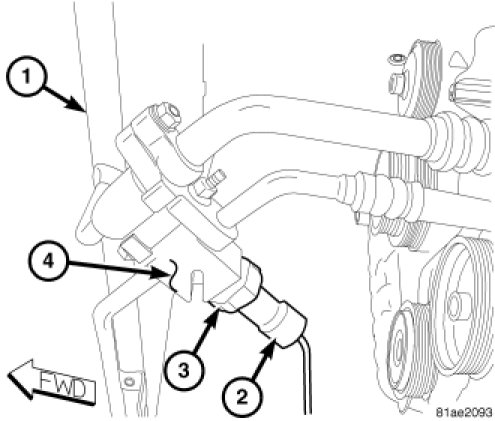

3. Disconnect the wire harness connector (2) from the A/C pressure transducer (4) located on the tapping block (4) at the left end of the A/C condenser (1).
4. Remove the A/C pressure transducer from the tapping block and remove and discard the O-ring seal.
