Installation

INSTALLATION

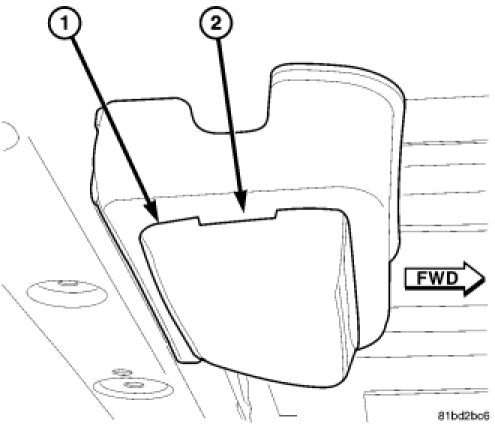

1. Position the motion detector unit (1) to its mounting location.
2. Reconnect the vehicle wire harness connector to the connector receptacle on the top of the motion detector housing.
3. Engage the retaining tab on one end of the housing into the edge of the mounting hole in the mounting bracket or the headliner, as the vehicle is equipped.
4. Push firmly and evenly upward on the other end of the unit until the second retaining tab snaps into place within the mounting hole.
5. Reconnect the battery negative cable.
