System Specifications

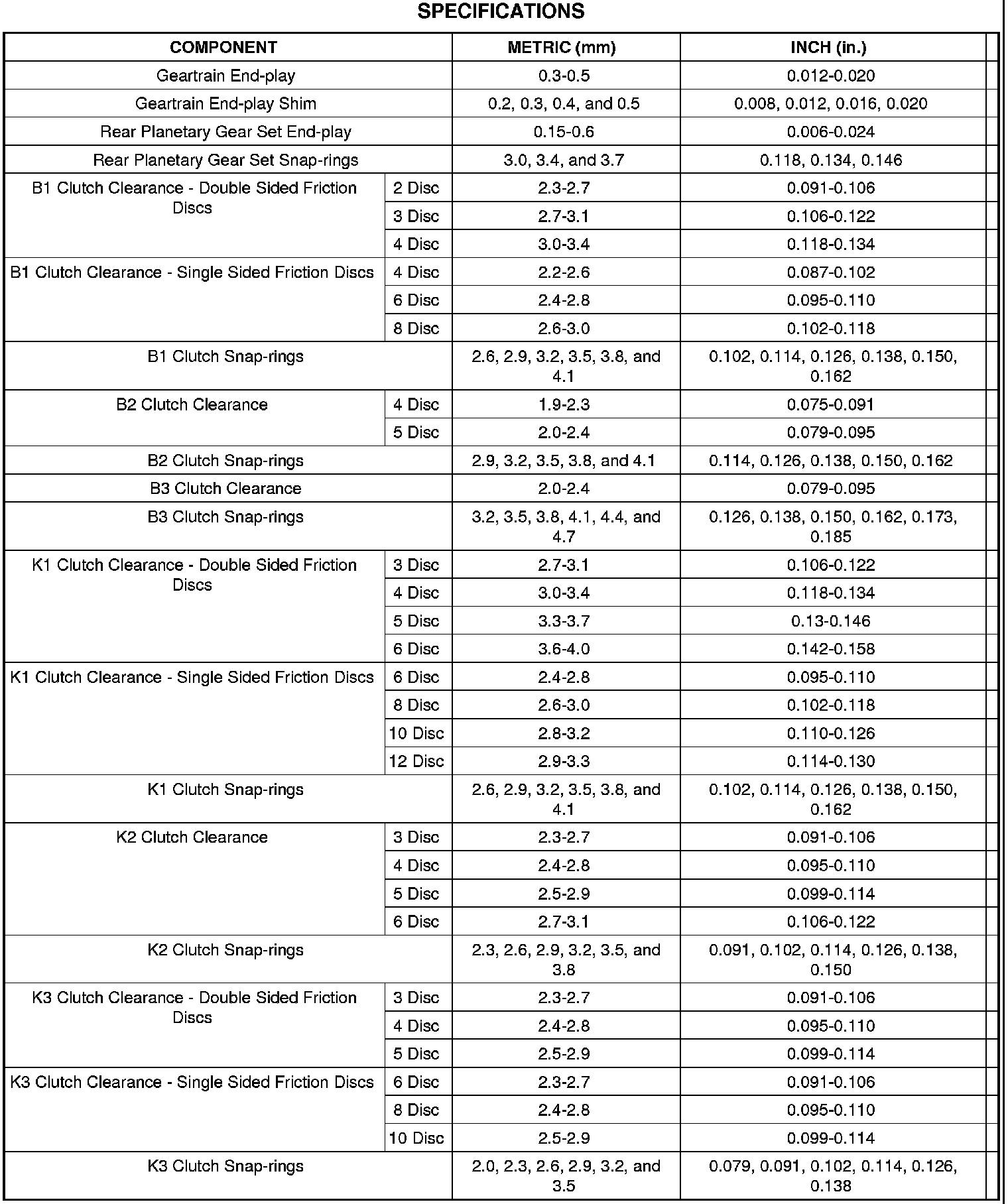

SPECIFICATIONS - NAG1 AUTOMATIC TRANSMISSION

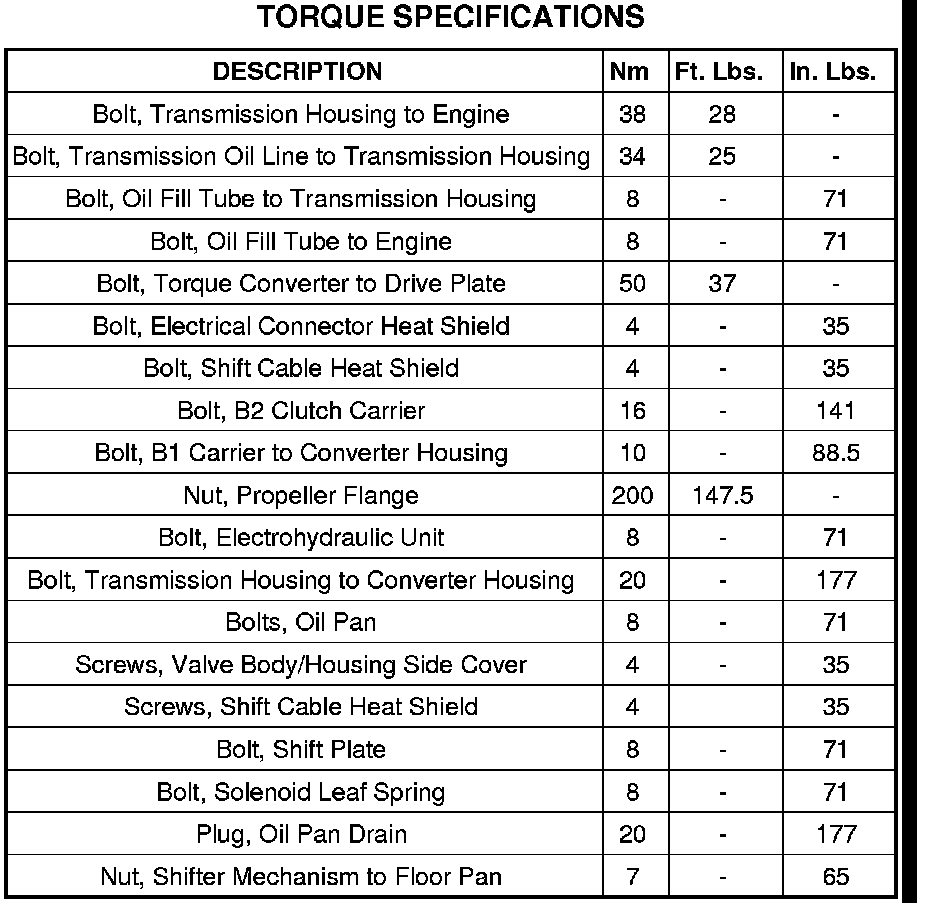

TORQUE SPECIFICATIONS






FLEX PLATE TORQUE AND SEQUENCE

1. Install flex plate bolts in a cross pattern (2) and tighten the bolts to 20 Nm (177 in. lbs.) and then to 45 Nm (33 ft. lbs.) and then tighten the bolts an additional 90 degrees.
2. Tighten the flex plate bolts an additional.
