Totally Integrated Power Module C10 (Engine Compartment) 8 Way

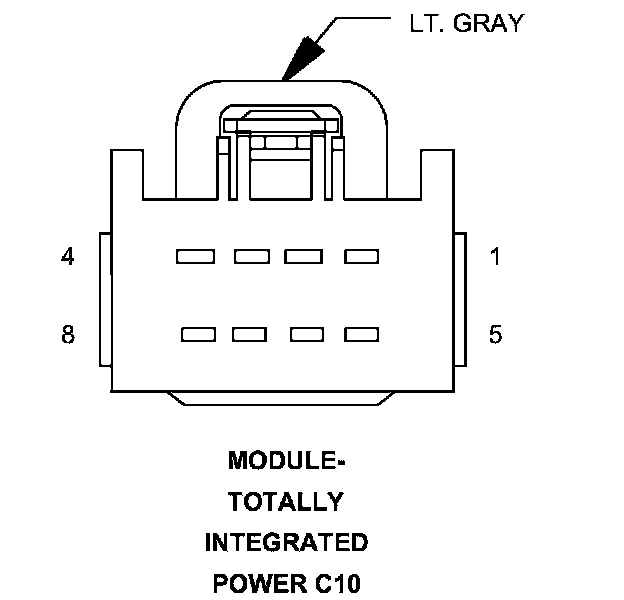

Connector C10 - (ENGINE COMPARTMENT) 8 WAY

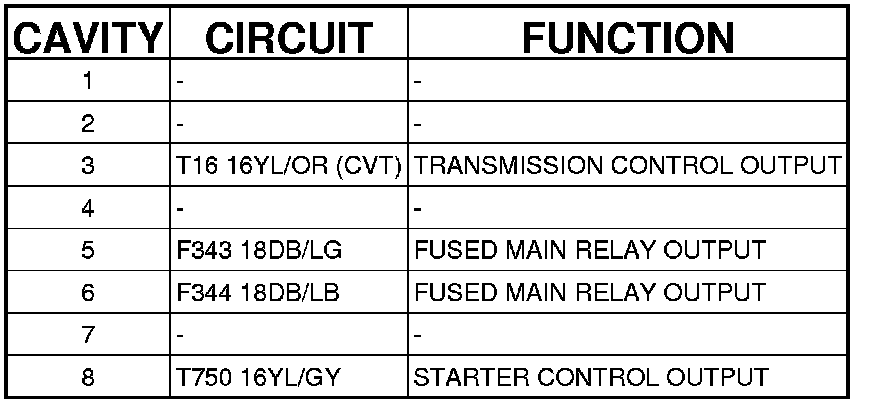

C10 TIPM - (ENGINE COMPARTMENT) 8 WAY
