Totally Integrated Power Module C11 (Engine Compartment) 22 Way

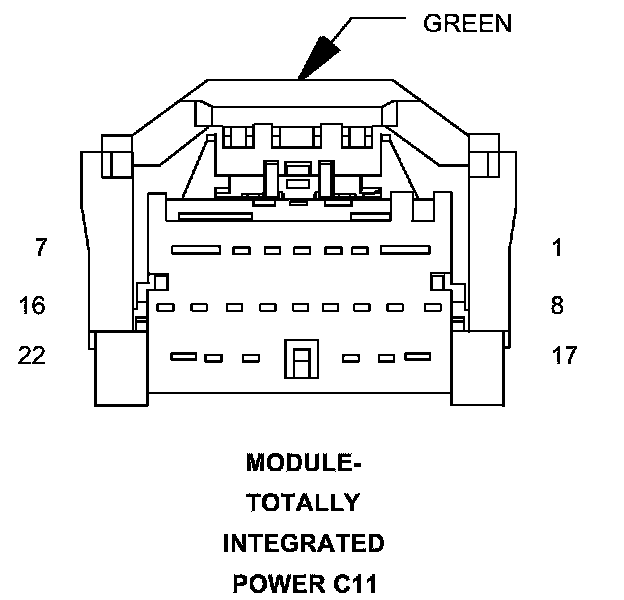

Connector C11 - (ENGINE COMPARTMENT) 22 WAY

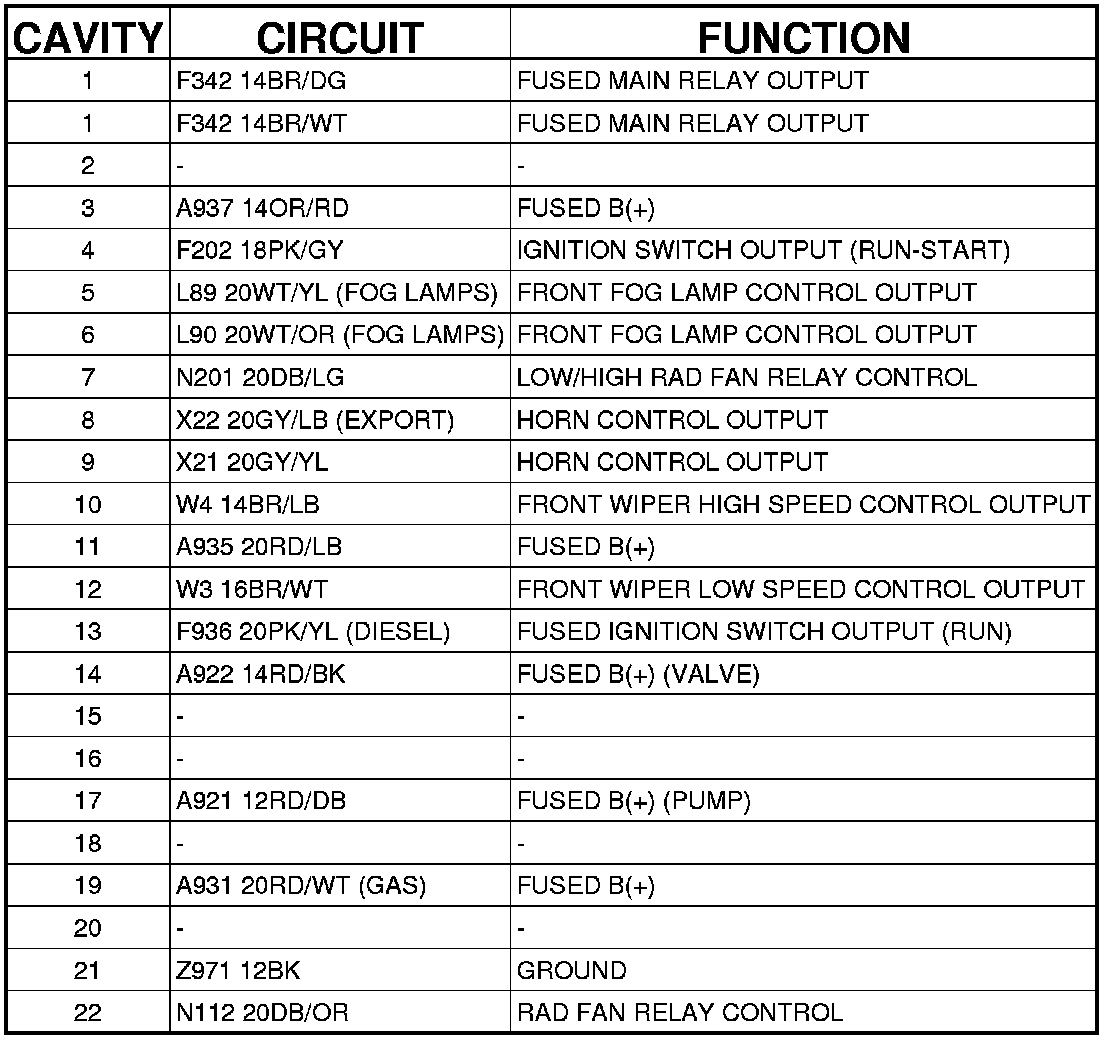

C11 TIPM - (ENGINE COMPARTMENT) 22 WAY
