Totally Integrated Power Module C6 (Engine Compartment) 13 Way

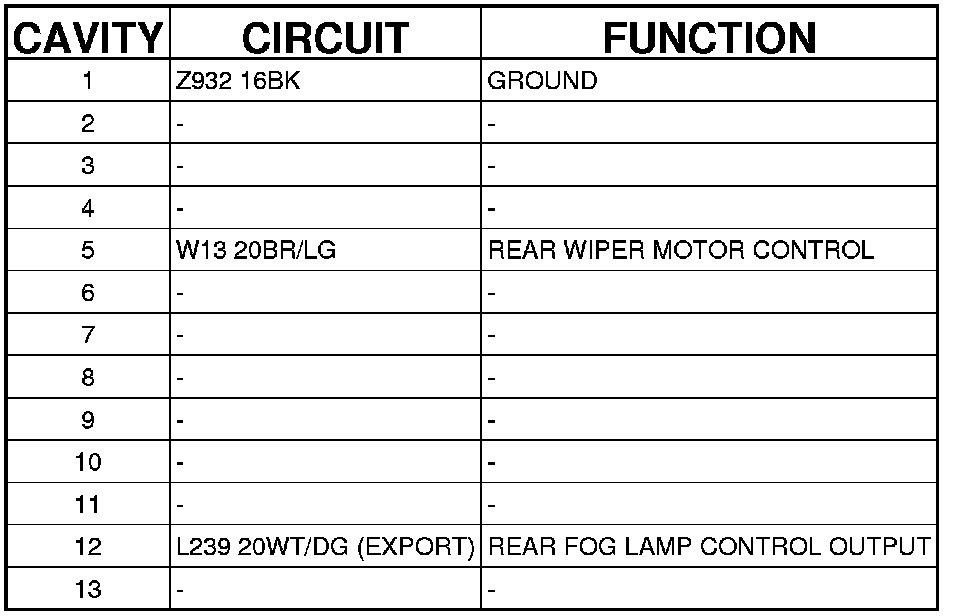

Connector C6 - (ENGINE COMPARTMENT) 13 WAY

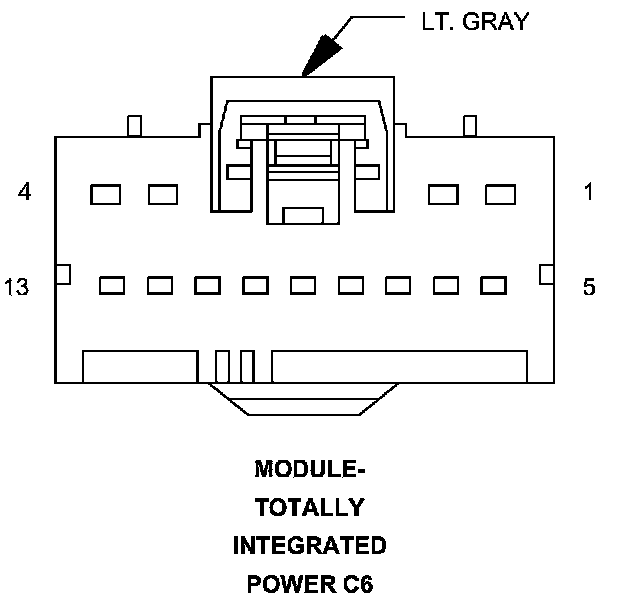

C6 TIPM - (ENGINE COMPARTMENT) 13 WAY
