Relay-Radiator Fan-Series/Parallel

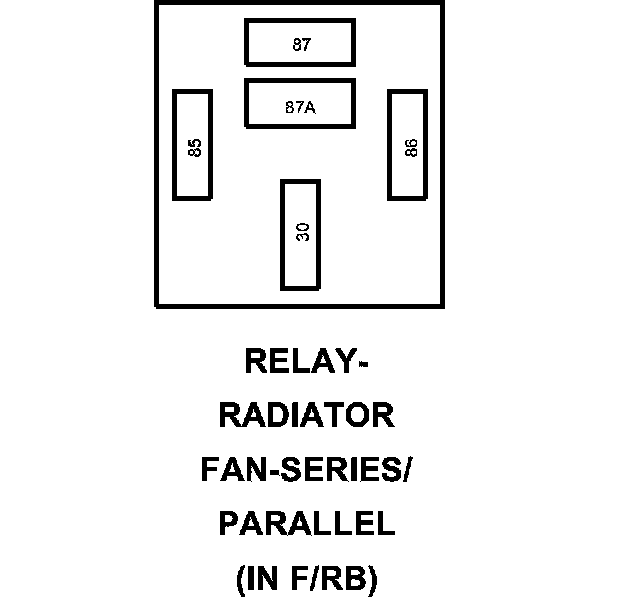

Connector - (IN F/RB)

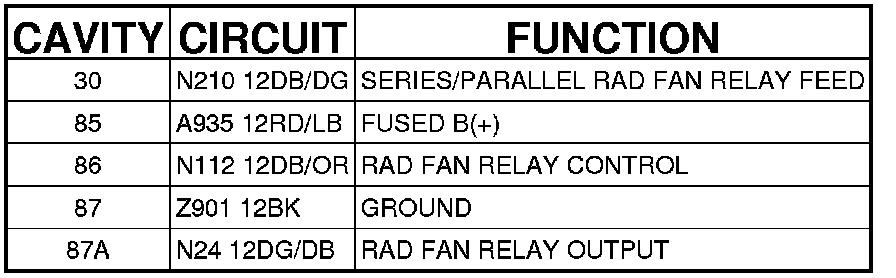

RELAY-RADIATOR FAN-SERIES/PARALLEL - (IN F/RB)
