Steering Angle Sensor, Traction Control

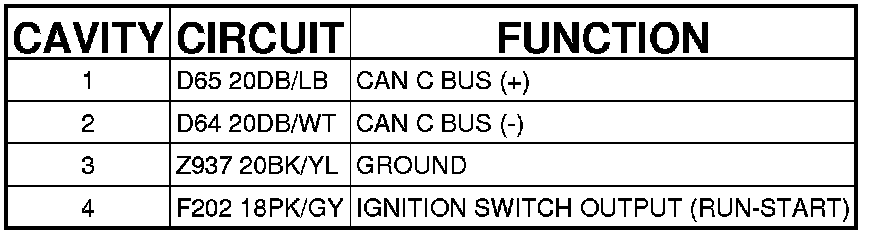

Connector - (INSTRUMENT PANEL) 4 WAY

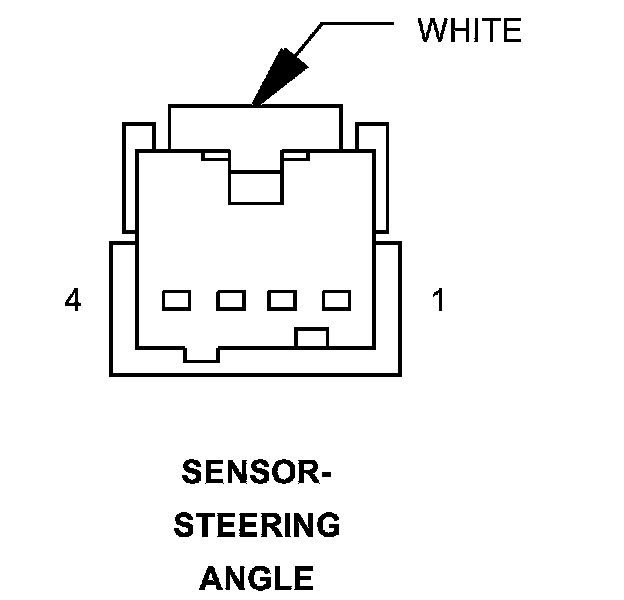

SENSOR-STEERING ANGLE - (INSTRUMENT PANEL) 4 WAY
