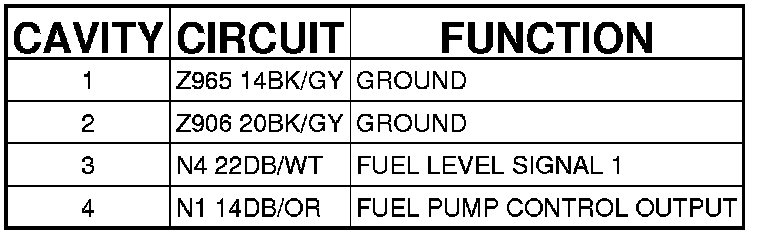

Fuel Pump Module (FWD) (Body) 4 Way
Connector (FWD) - (BODY) 4 WAY

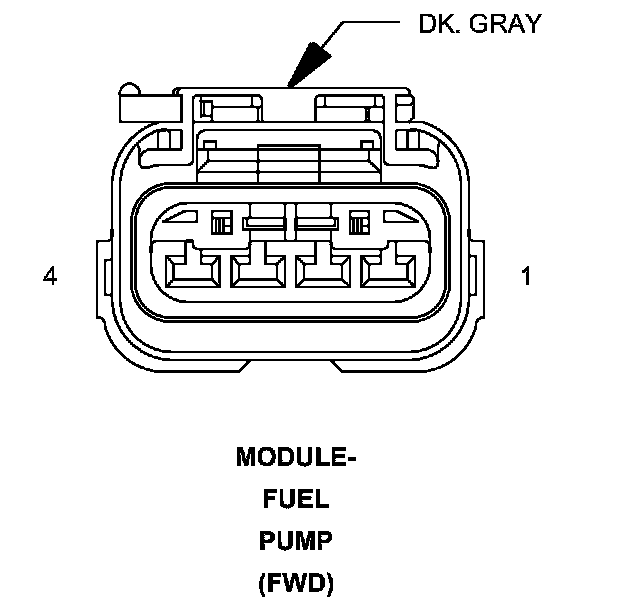

MODULE-FUEL PUMP (FWD) - (BODY) 4 WAY
