Main Relay (Computer/Fuel System): Locations
Main Relay
is located in the Fuse/Relay block.

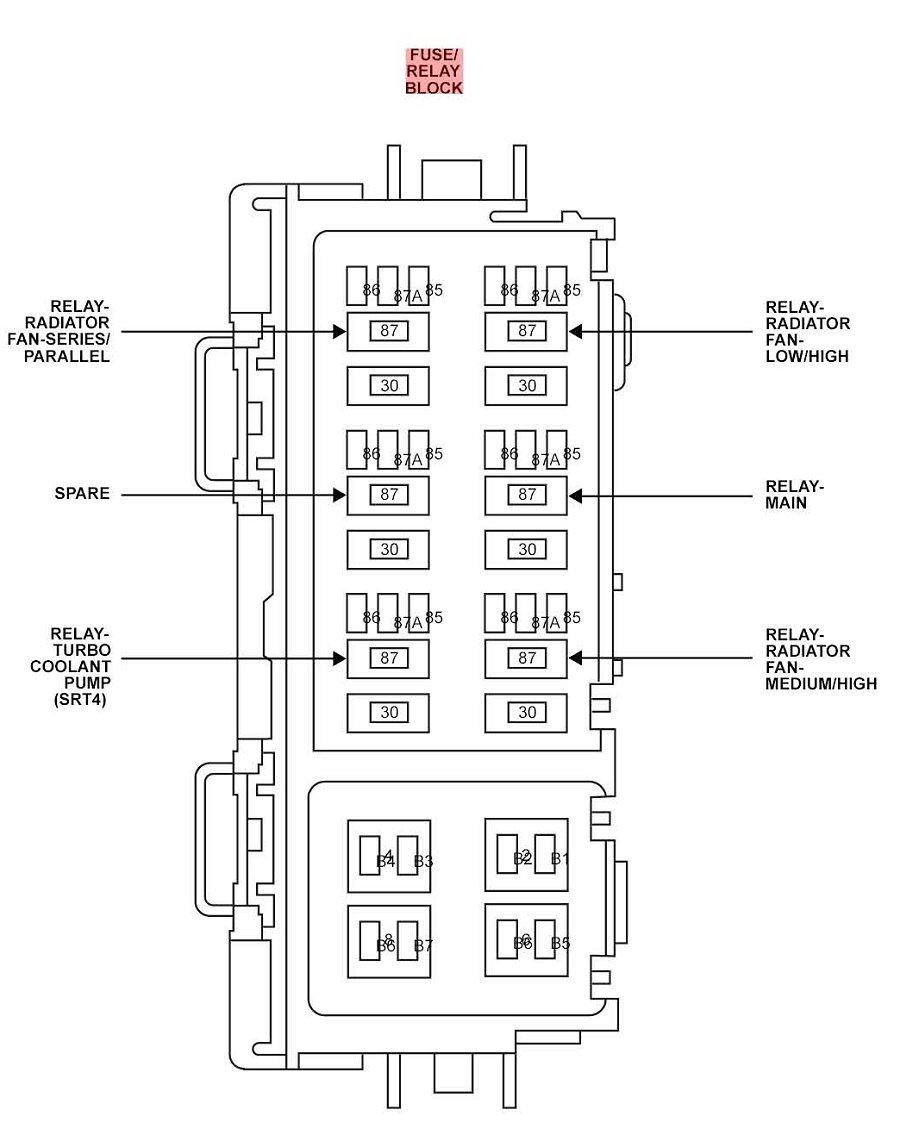

Fuse/Relay Block:
