P0366-Camshaft Position Sensor Performance-Bank 1 Sensor 2: Notes

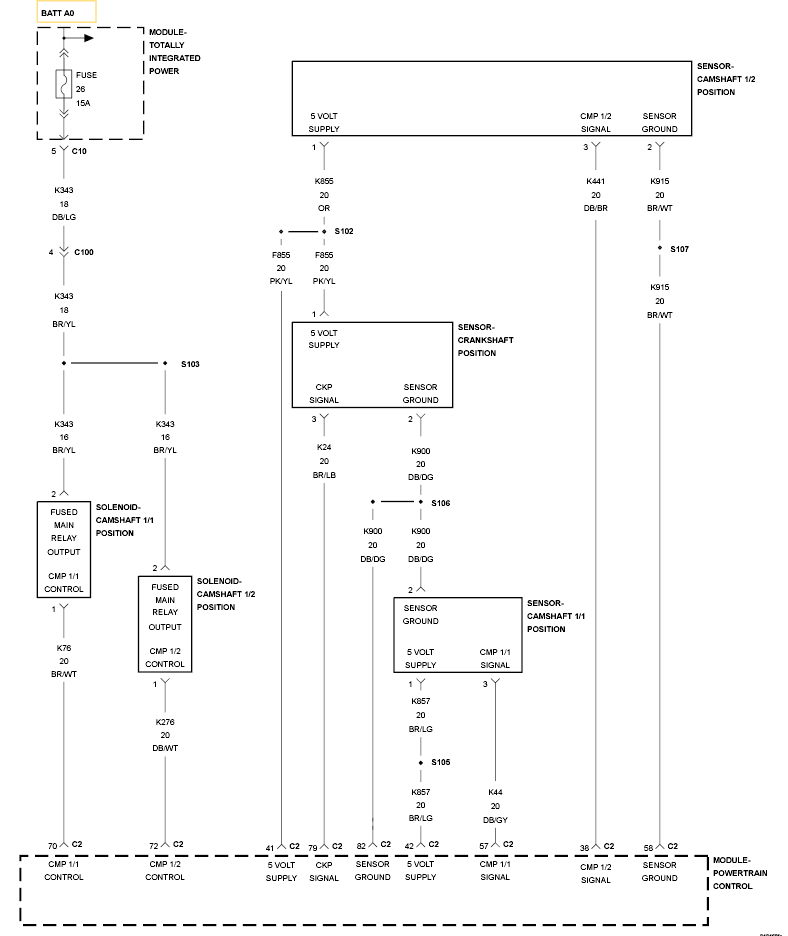

Fig 1: CKP Sensor Circuit

GC0099838

Courtesy of CHRYSLER LLC
