MODULE, Occupant Restraint Controller: Removal: Removal

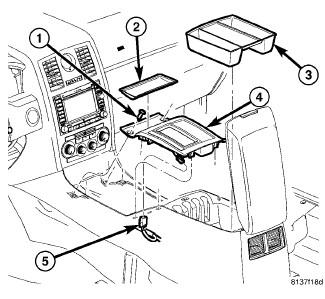

Fig 1: Identifying Front Console Components

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
   WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, and serious or fatal injury.
2. Remove the center floor console. Refer to Body/Interior/CONSOLE, Floor - Removal .
   Fig 2: Locating Electrical Connectors

   Courtesy of CHRYSLER LLC
3. Disconnect the two Occupant Restraint Controller (ORC) electrical connectors (1 and 2).
   Fig 3: Sound Deadening Material And ORC Fasteners

   Courtesy of CHRYSLER LLC
4. Move the sound deadening material (1) to access the ORC mounting screws.
   Fig 4: Occupant Restraint Controller

   Courtesy of CHRYSLER LLC
5. Remove the three mounting screws (1) to the ORC (2) from the vehicle.
