Speed Control Switch - Installation

INSTALLATION





1. Install the speed control switch (2) to the steering wheel.

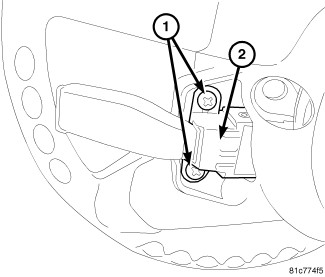

2. Install the two screws (1) to the rear of the speed control switch (2) and tighten to 1 Nm (9 in. lbs.).

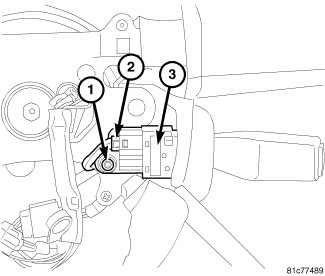

3. Install the screw (1) to the front of the speed control switch (3) and tighten to 3.5 Nm (31 in. lbs.).
4. Connect the speed control switch electrical connector (2).
5. Install drivers airbagDriver Air Bag - Installation.
6. Verify system operation.

7. Connect the negative battery cable.
