Transmission Control Module C2 (NAG1) (Headlamp And Dash) 14 Way

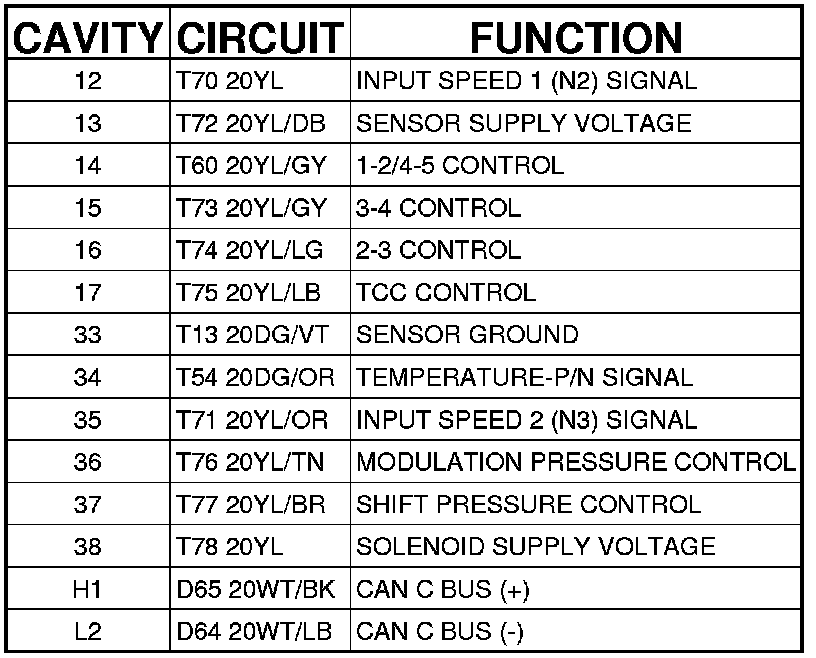

Connector C2 (NAG1) - (HEADLAMP AND DASH) 14 WAY

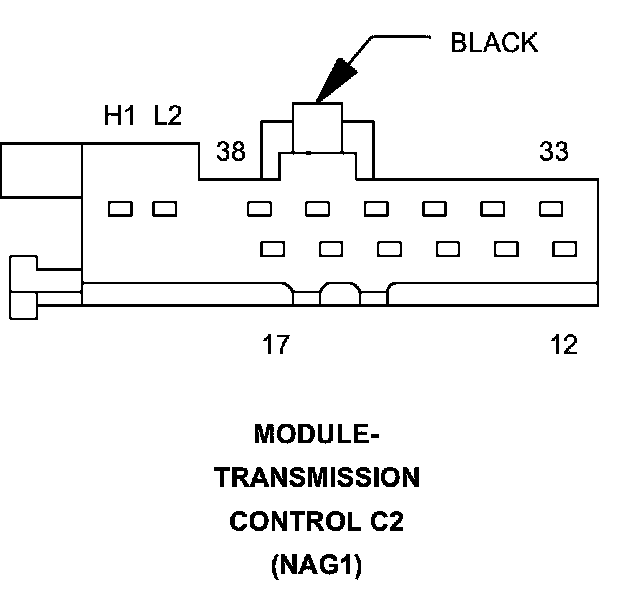

MODULE-TRANSMISSION CONTROL (NAG1) - (HEADLAMP AND DASH) 14 WAY
