Module - Totally Integrated Power C1

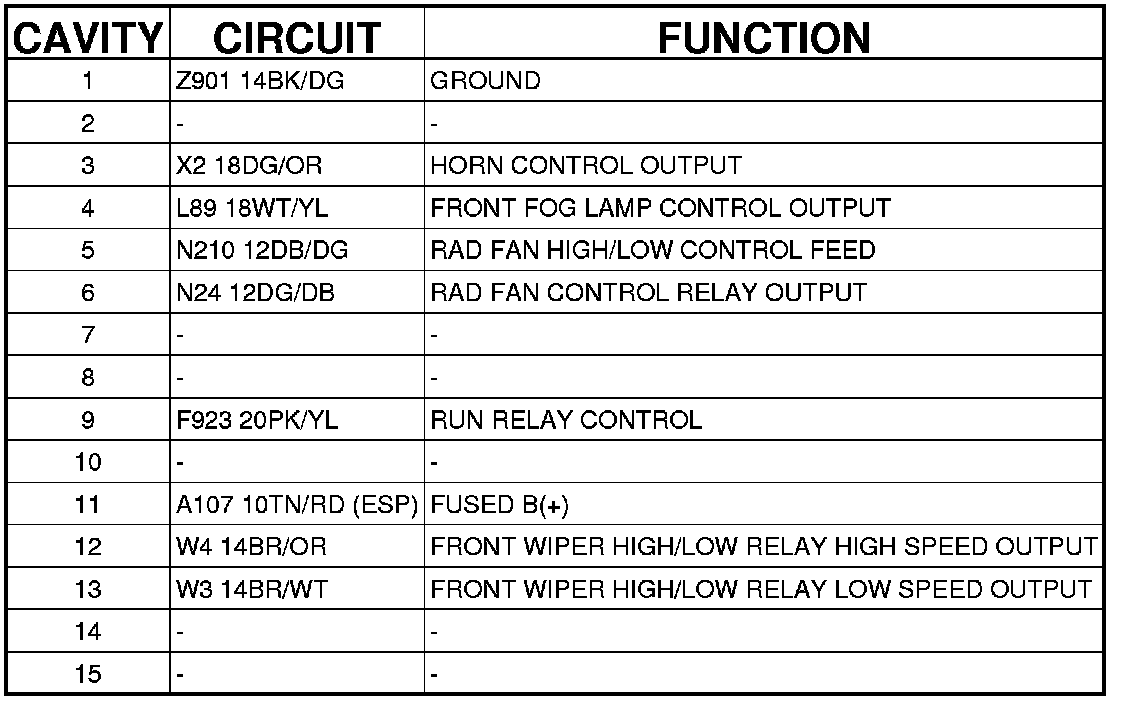

Connector C1 - (HEADLAMP AND DASH) 15 WAY

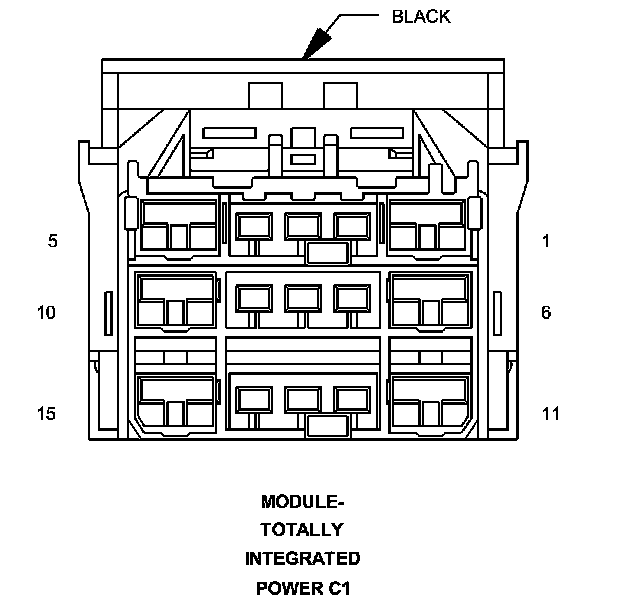

MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 15 WAY
