Module - Totally Integrated Power C4

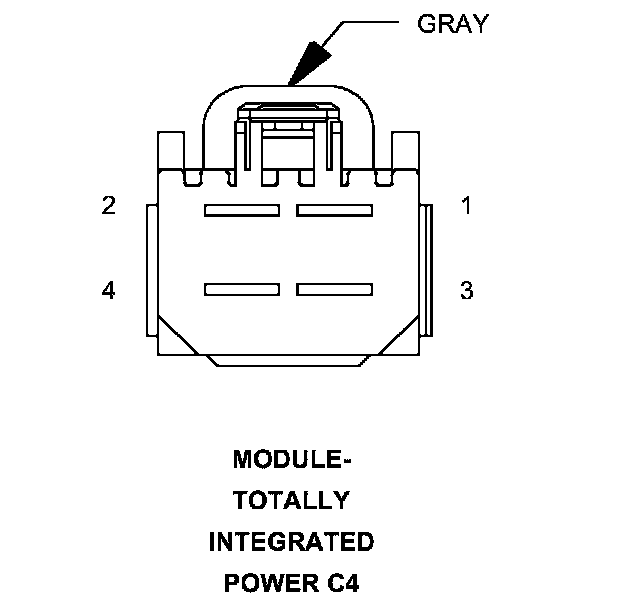

Connector C4 - (HEADLAMP AND DASH) 4 WAY

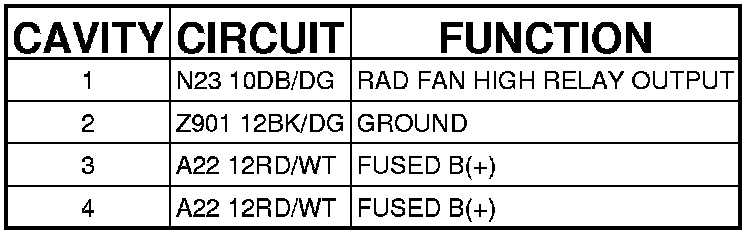

MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 4 WAY
