Steering Control Module C4 (Steering Wheel Jumper) 8 Way

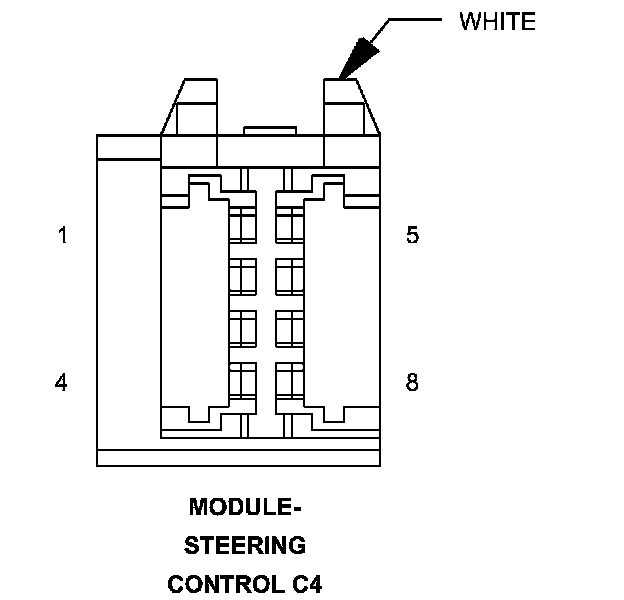

Connector C4 - (STEERING WHEEL JUMPER) 8 WAY

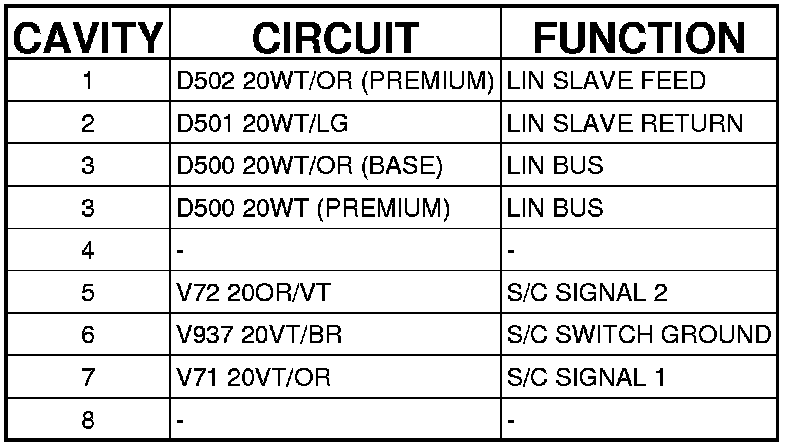

MODULE-STEERING CONTROL - (STEERING WHEEL JUMPER) 8 WAY
