Module - Totally Integrated Power C2

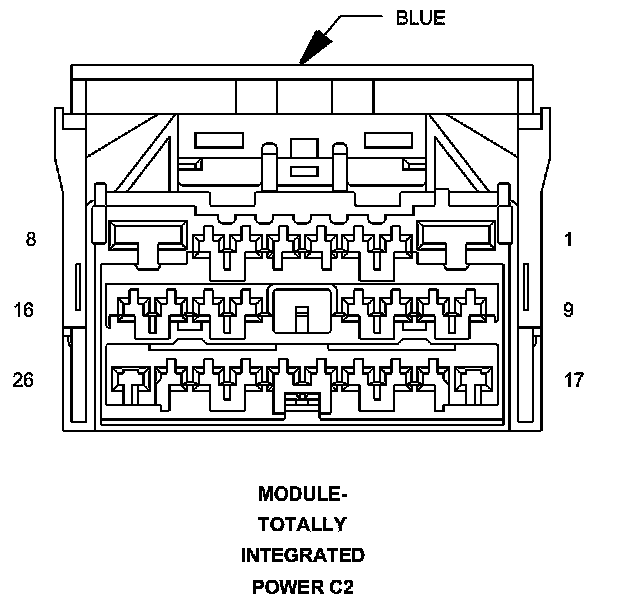

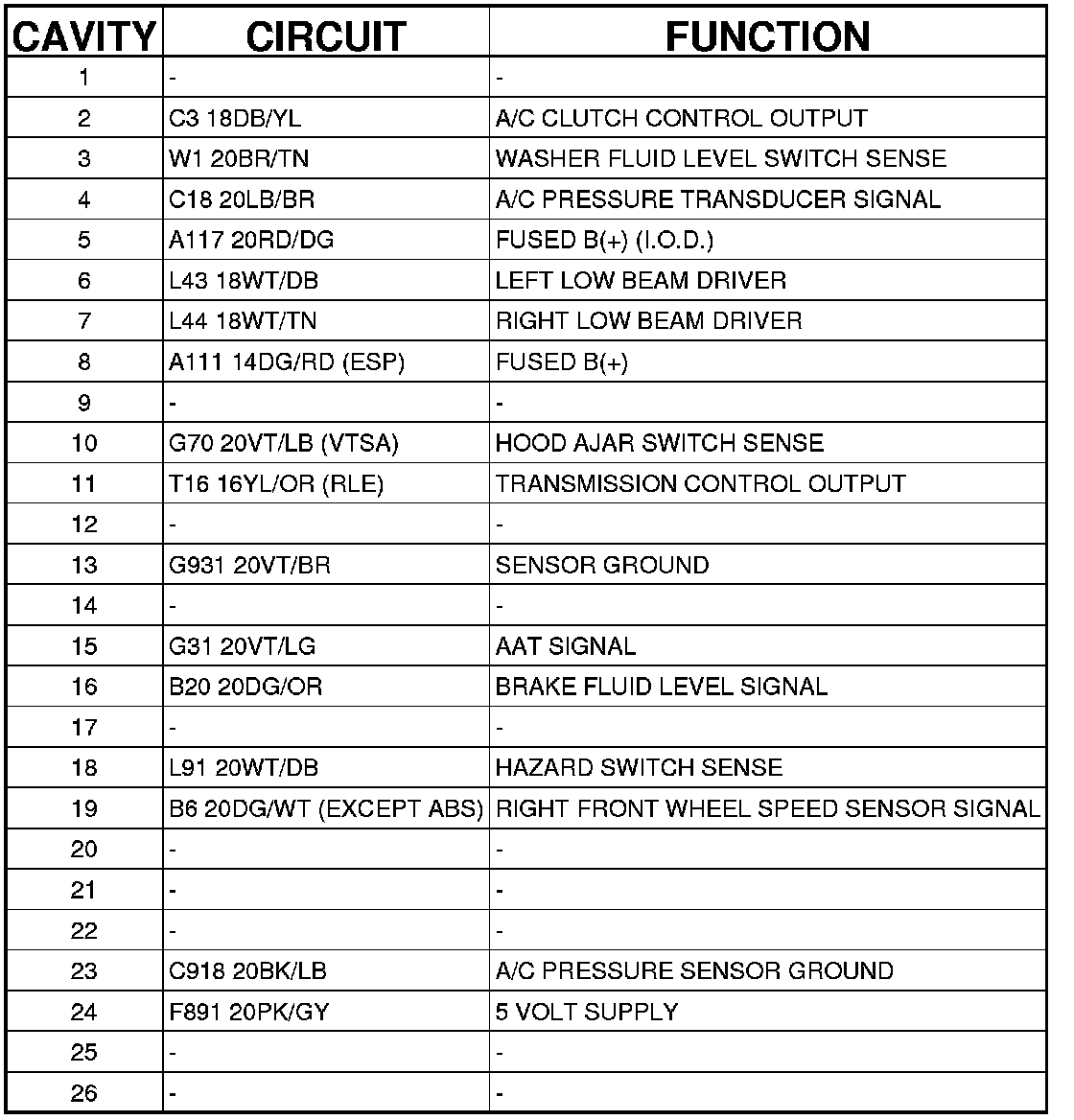

Connector C2 - (HEADLAMP AND DASH) 26 WAY




MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 26 WAY
