Coolant Temperature Sensor/Switch (For Computer): Diagrams

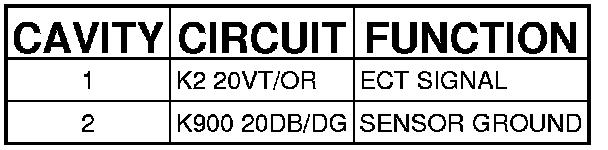

Connector - (ENGINE) 2 WAY

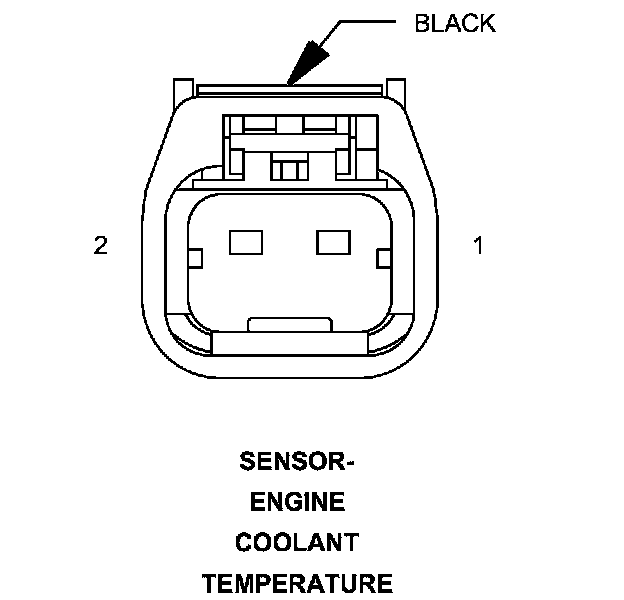

SENSOR-ENGINE COOLANT TEMPERATURE - (ENGINE) 2 WAY
