Knock Sensor - Installation

INSTALLATION






CAUTION: Over or under tightening the sensor mounting bolts will affect knock sensor performance, possibly causing improper spark control.

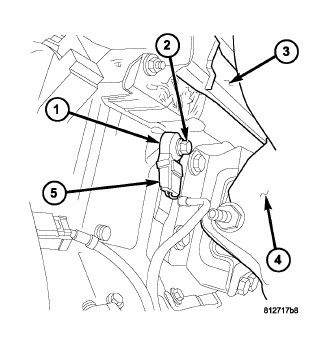

1. Install knock sensor (1) onto cylinder block.

NOTE: The foam strip used on bolt threads is used only to retain the bolts to sensors for plant assembly. It is not used as a sealant. Do not apply any adhesive, sealant or thread locking compound to these bolts.

2. Install mounting bolt and tighten (2) to 20 Nm (15 ft. lbs.).
3. Connect electrical connector (5) to sensor.

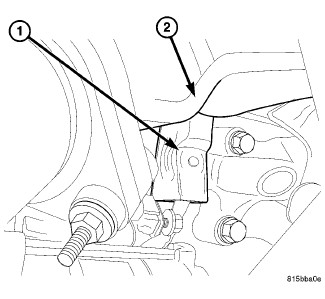

4. Install heat shield (1) to sensor.
5. Connect negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
