Diagnostic Test

DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE
NOTE: This DTC must be active for the results of this test to be valid.
1. Turn the ignition on.
2. Using the scan tool, select view DTCs. Record all DTC information.
3. Using the scan tool, clear stored DTCs.
4. Cycle the ignition switch off then on.
5. Move the Adjustable Pedals Switch forward and rearward several times.
6. Using the scan tool, select view DTCs.
  Is the status active for this DTC?

  Yes
  - Go to Step 2.
  No
  - Go to and perform the APS INTERMITTENT CONDITION procedure. See APS-INTERMITTENT CONDITION .
ADJUSTABLE PEDALS SWITCH
1. Disconnect the Adjustable Pedals Sensor harness connector.
2. Wait approximately 10 seconds.
3. Using the scan tool, select view DTCs.
  Does the status remain active for this DTC?

  Yes
  - Go to Step 3.
  No
  - Replace the Adjustable Pedals Switch in accordance with the Service Information.
  - Perform the APS VERIFICATION TEST. See APS VERIFICATION TEST .
WIRING HARNESS CONNECTOR/TERMINALS
1. Turn the ignition off.
2. Disconnect the Memory Seat Module harness connector.
3. Inspect the Adjustable Pedals Sensor and Memory Seat Module wiring harness, connectors and terminals.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the APS VERIFICATION TEST. See APS VERIFICATION TEST .
  No
  - Go to Step 4.
(Q102) ADJUSTABLE PEDALS SWITCH FORWARD CIRCUIT SHORT TO GROUND

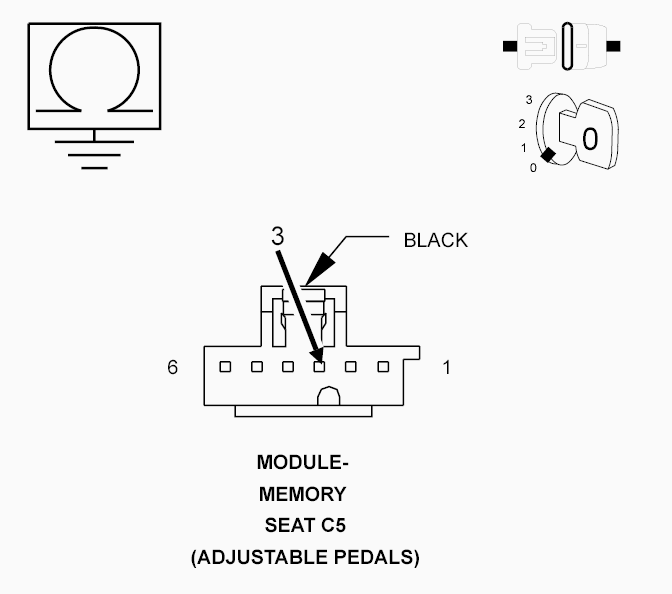

Fig 1: Measuring Resistance Between Ground & Adjustable Pedals Switch Forward Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (Q102) Adjustable Pedals Switch Forward circuit.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (Q102) Adjustable Pedals Switch Forward circuit for a short to ground.
  - Perform the APS VERIFICATION TEST. See APS VERIFICATION TEST .
  No
  - Go to Step 5.
(Q102) ADJUSTABLE PEDALS SWITCH FORWARD CIRCUIT SHORT TO (Q101) ADJUSTABLE PEDALS SWITCH GROUND CIRCUIT

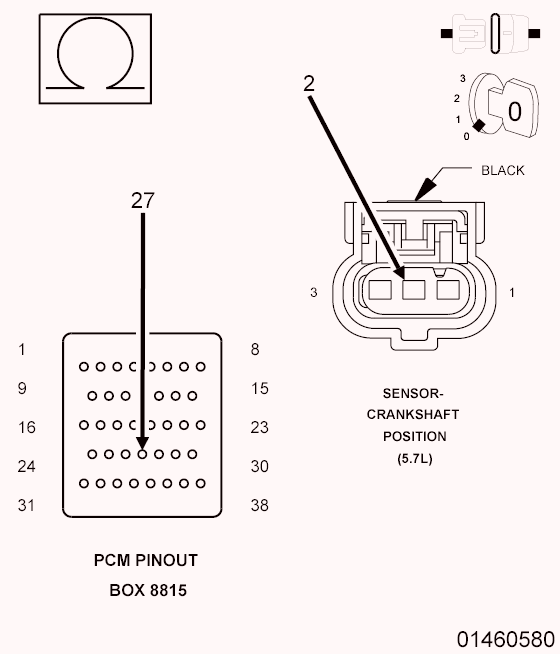

Fig 2: Measuring Resistance Between Adjustable Pedals Switch Forward Circuit & Adjustable Pedals Switch Ground Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (Q102) Adjustable Pedals Switch Forward circuit and the (Q101) Adjustable Pedals Switch Ground circuit.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (Q102) Adjustable Pedals Switch Forward circuit for a short to the (Q101) Adjustable Pedals Switch Ground circuit.
  - Perform the APS VERIFICATION TEST. See APS VERIFICATION TEST .
  No
  - Replace the Memory Seat Module in accordance with the Service Information.
  - Perform the APS VERIFICATION TEST. See APS VERIFICATION TEST .
