Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
(Steering Control Module (SCM) - Electrical Diagnostics)
>>
DTC Troubleshooting
>>
B1DA5-Steering Column Telescope Switch Circuit Stuck
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

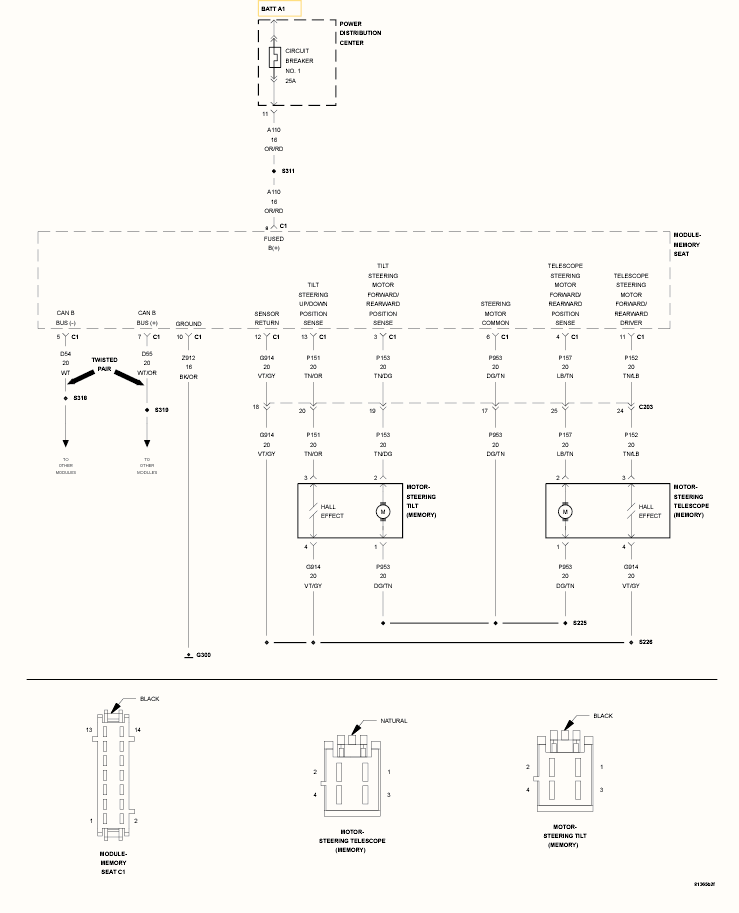

Fig 1: Steering Column Tilt Switch Circuit Schematic
