Front Blower Power Module C2 (ATC HVAC) 2 Way

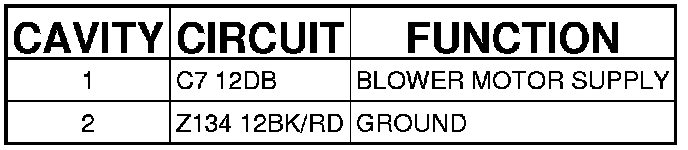

Connector C2 (ATC) - (HVAC) 2 WAY

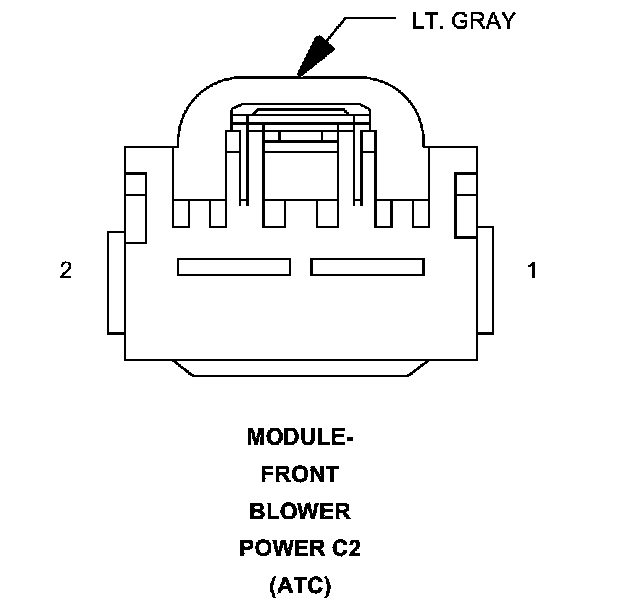

MODULE-FRONT BLOWER POWER (ATC) - (HVAC) 2 WAY
