Driver Door Module C3 (Memory) (Front Door) 16 Way

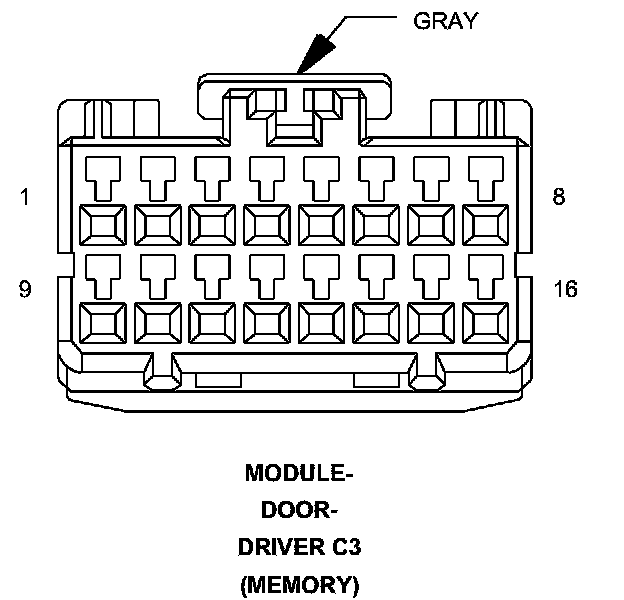

Connector C3 (MEMORY) - (FRONT DOOR) 16 WAY

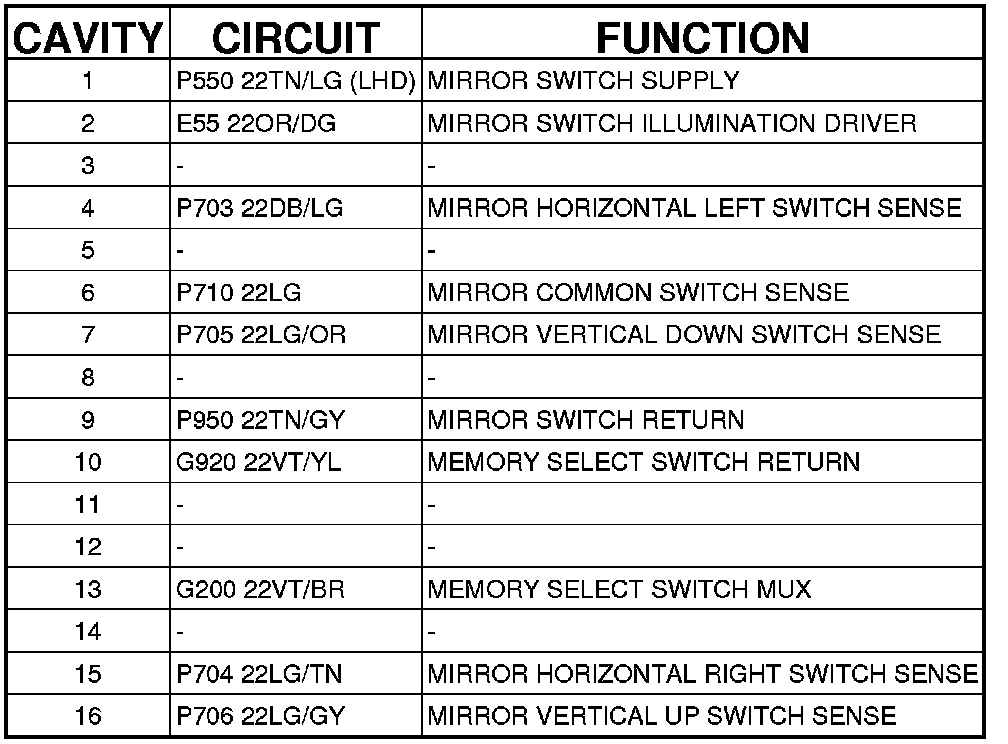

MODULE-DOOR-DRIVER (MEMORY) - (FRONT DOOR) 16 WAY
