Engine Coolant Temperature Sensor - Removal

5.7L/6.1L





1. Partially drain the cooling system Service and Repair.
2. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.

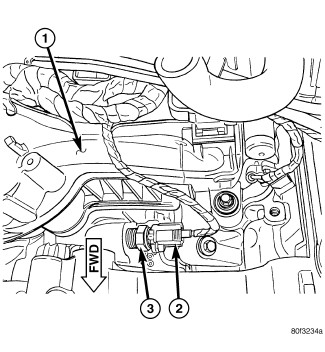

3. Carefully unbolt air conditioning compressor from front of engine. Do not disconnect any A/C hoses from compressor. Temporarily support compressor to gain access to ECT sensor (3).
4. Disconnect electrical connector (2) from sensor (3).
5. Remove sensor (3) from cylinder block.
