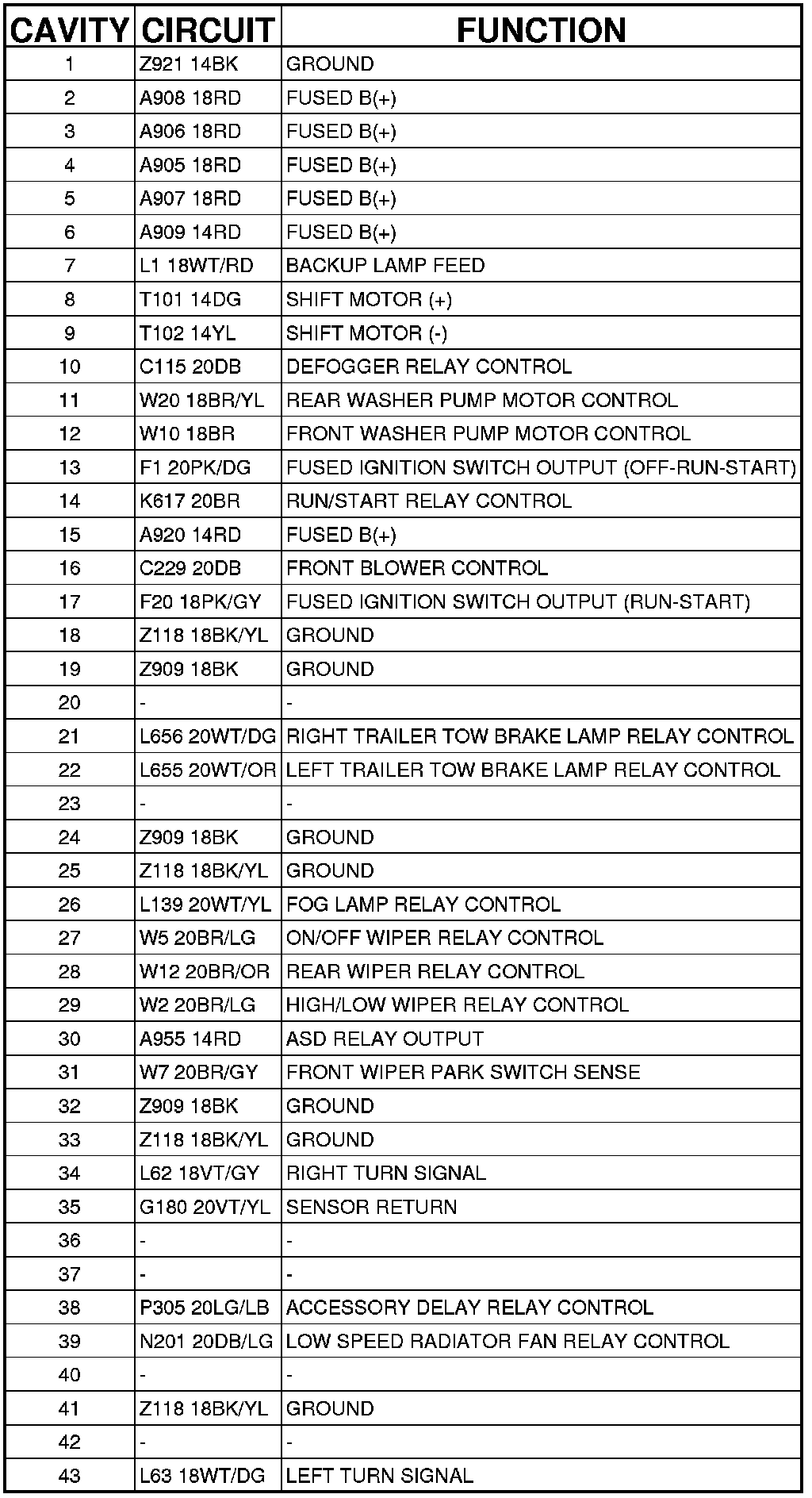

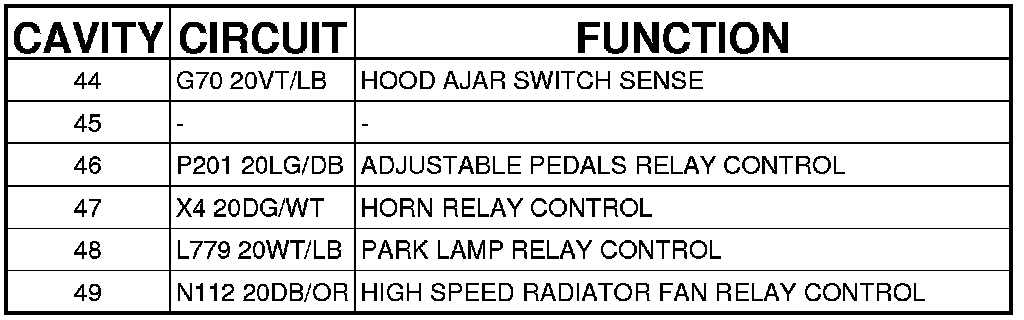

Front Control Module (PDC AUX) 49 Way

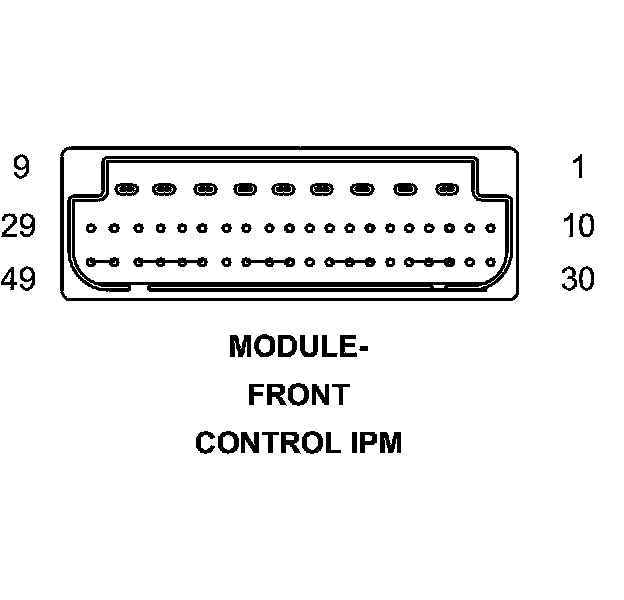

Connector - (PDC AUX) 49 WAY
MODULE-FRONT CONTROL - (PDC AUX) 49 WAY
