Driver Door Module C3 (Front Driver Door) 12 Way

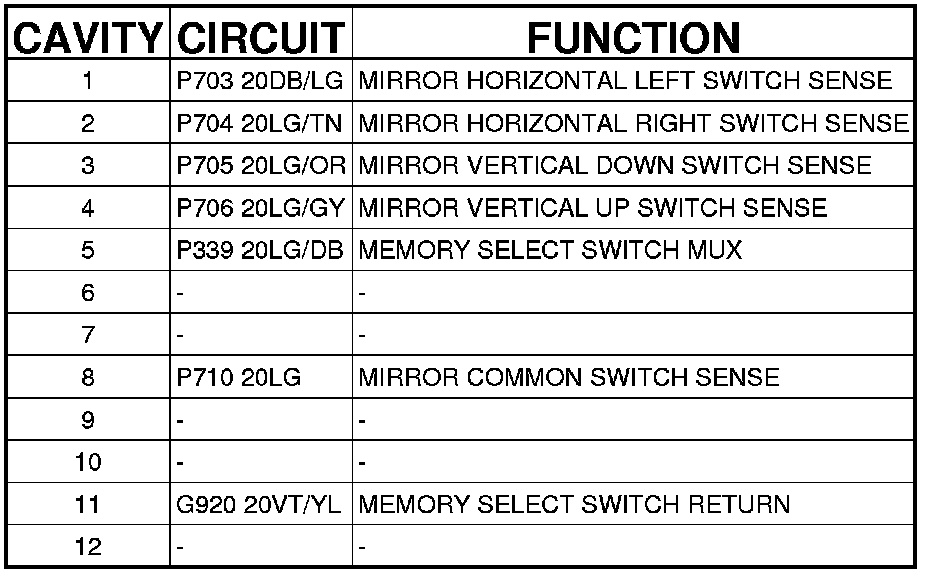

Connector C3 - (FRONT DRIVER DOOR) 12 WAY

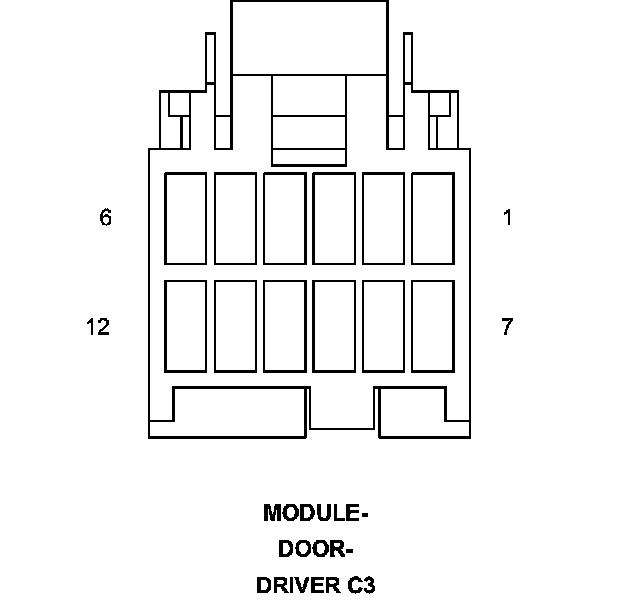

MODULE-DOOR-DRIVER - (FRONT DRIVER DOOR) 12 WAY
