Powertrain Control Module C3 38 Way

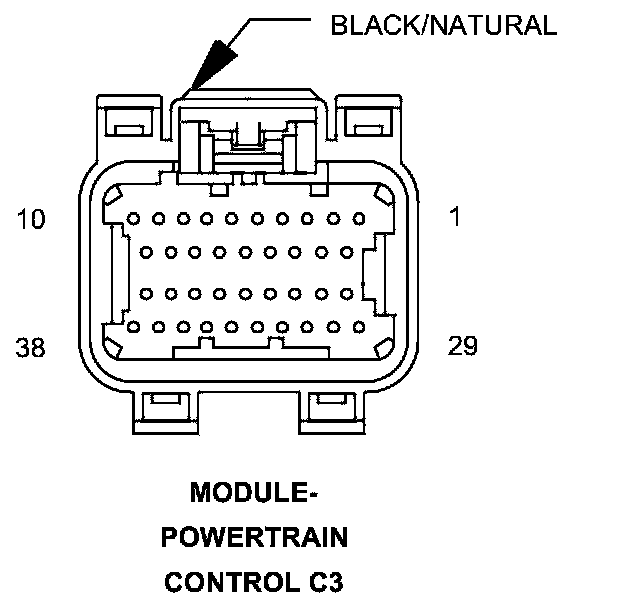

Connector C3 - (ENGINE) 38 WAY

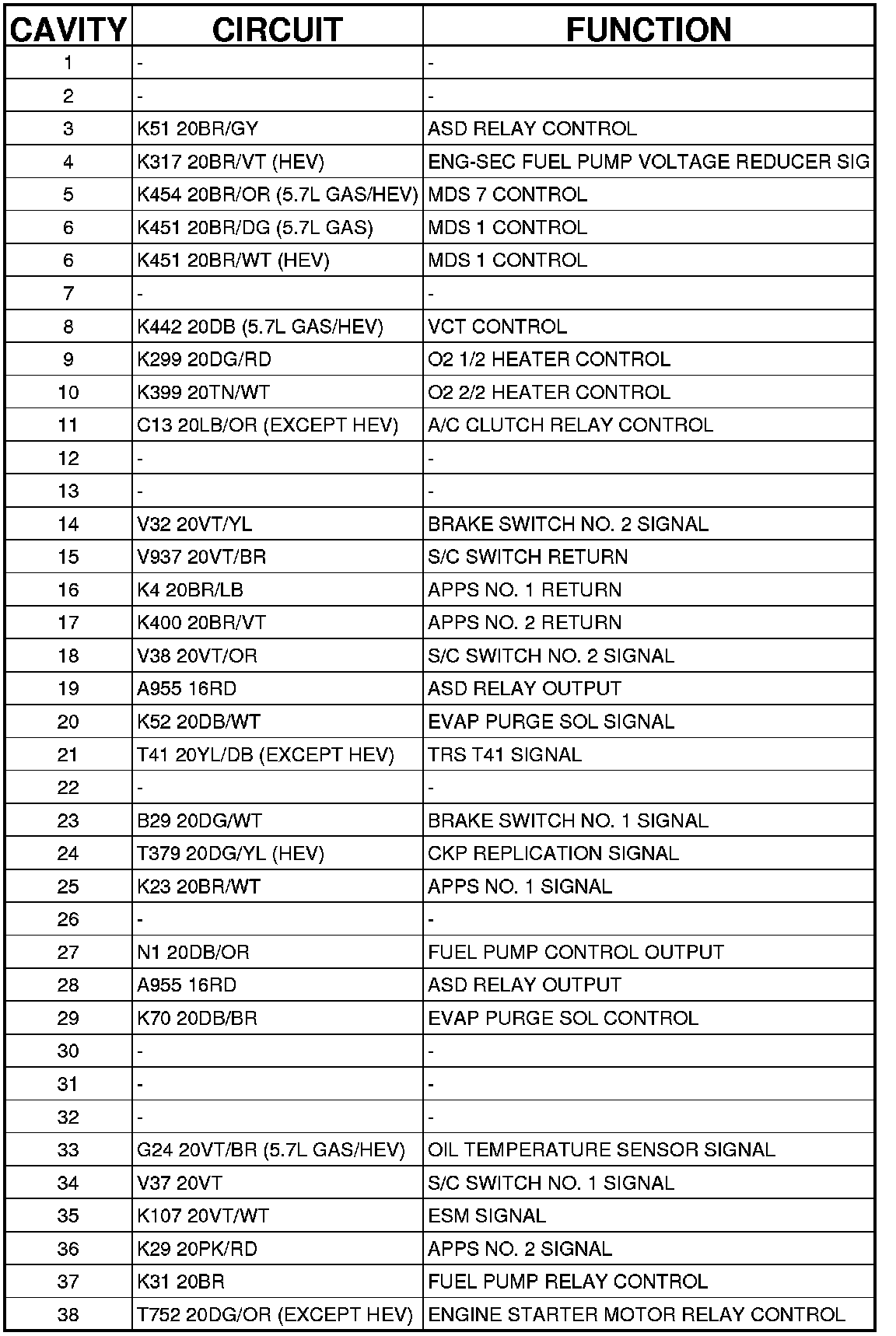

MODULE-POWERTRAIN CONTROL - (ENGINE) 38 WAY
