Line Pressure Sensor/Variable Force Solenoid Assembly (RLE) 6 Way

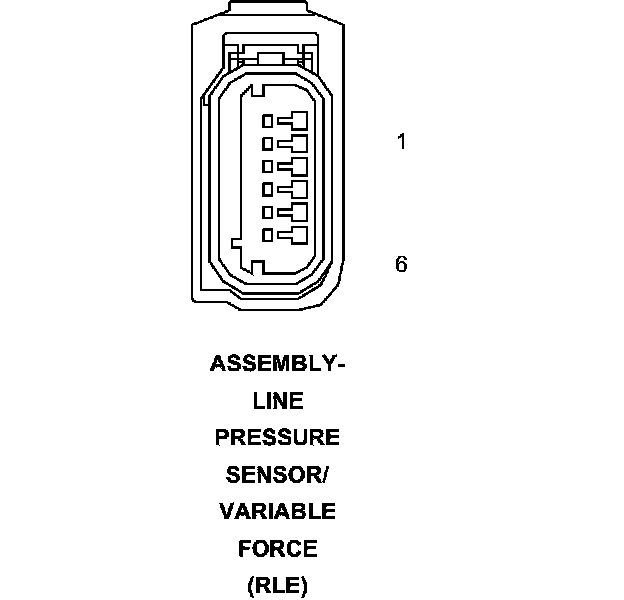

Connector (RLE) - (ENGINE) 6 WAY

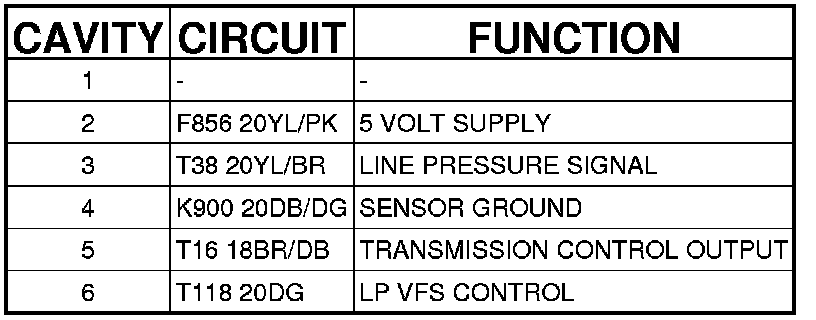

ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID (RLE) - (ENGINE) 6 WAY
