Memory Seat Module C1 (Left Seat) 14 Way

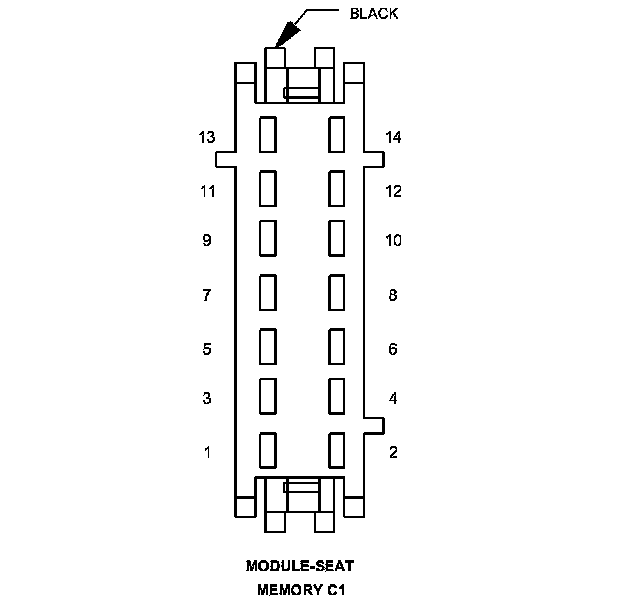

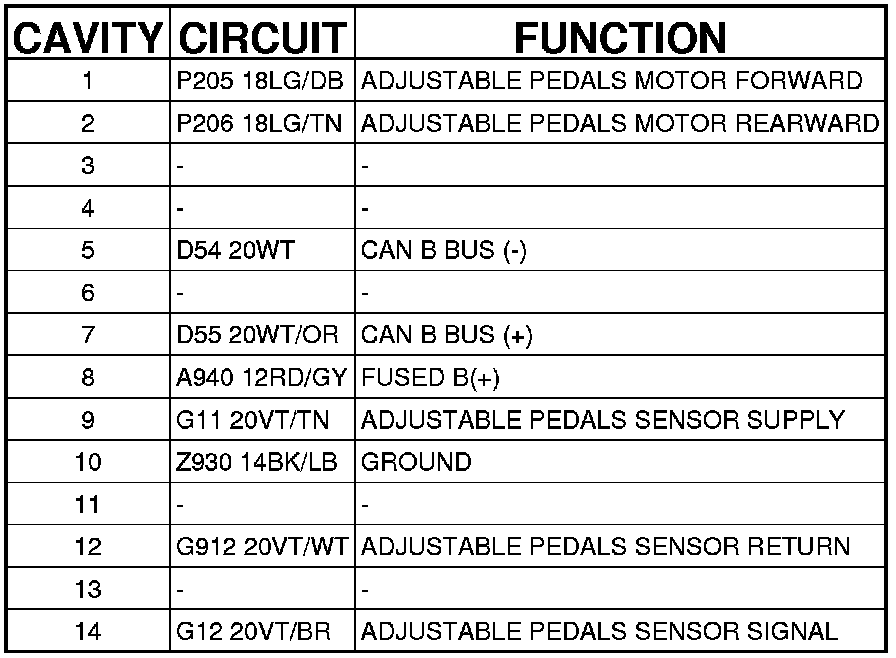

Connector C1 - (LEFT SEAT) 14 WAY
MODULE-SEAT MEMORY - (LEFT SEAT) 14 WAY
