110v Inverter Module (Right Seat) 9 Way

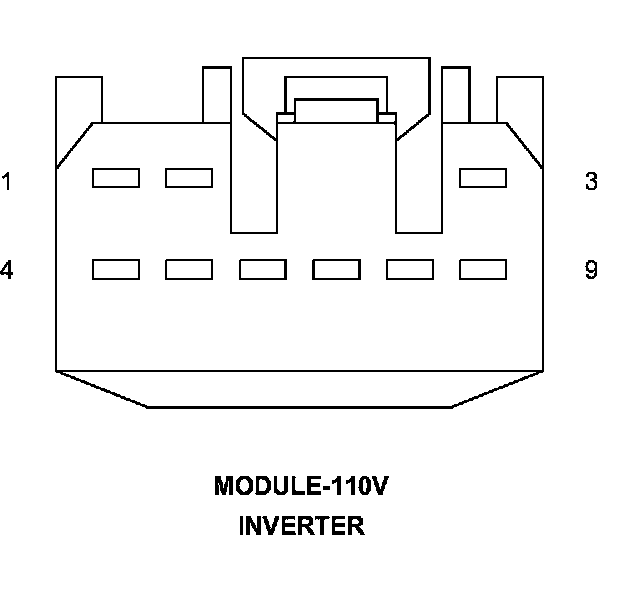

Connector - (RIGHT SEAT) 9 WAY

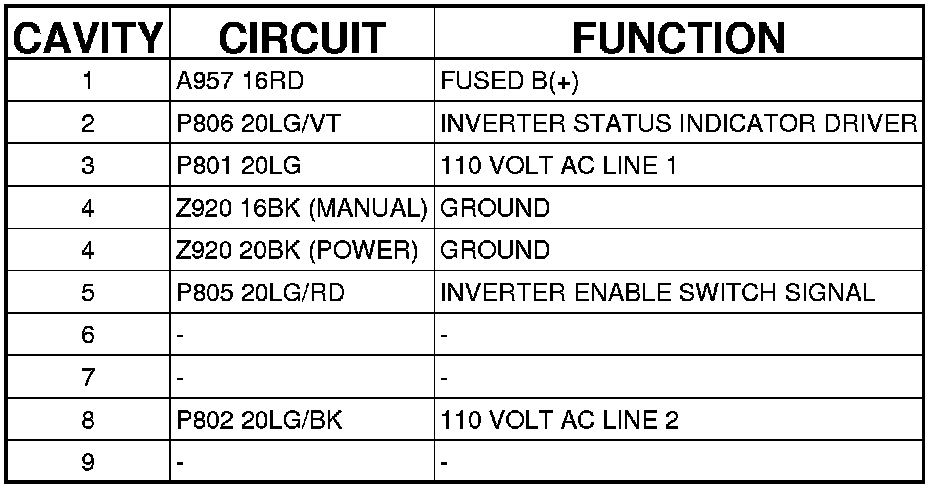

MODULE-110V INVERTER - (RIGHT SEAT) 9 WAY
